LWGV3 Product Advantages

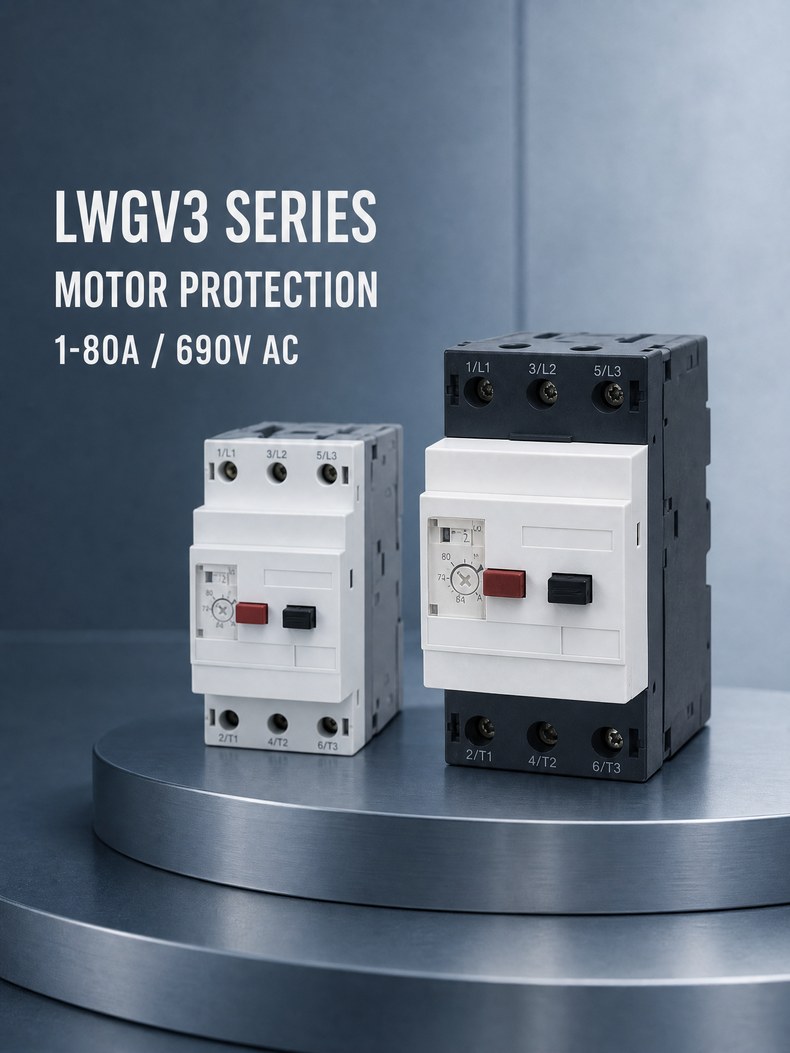

✅ Rated voltage up to 690V, current range:1A~80A

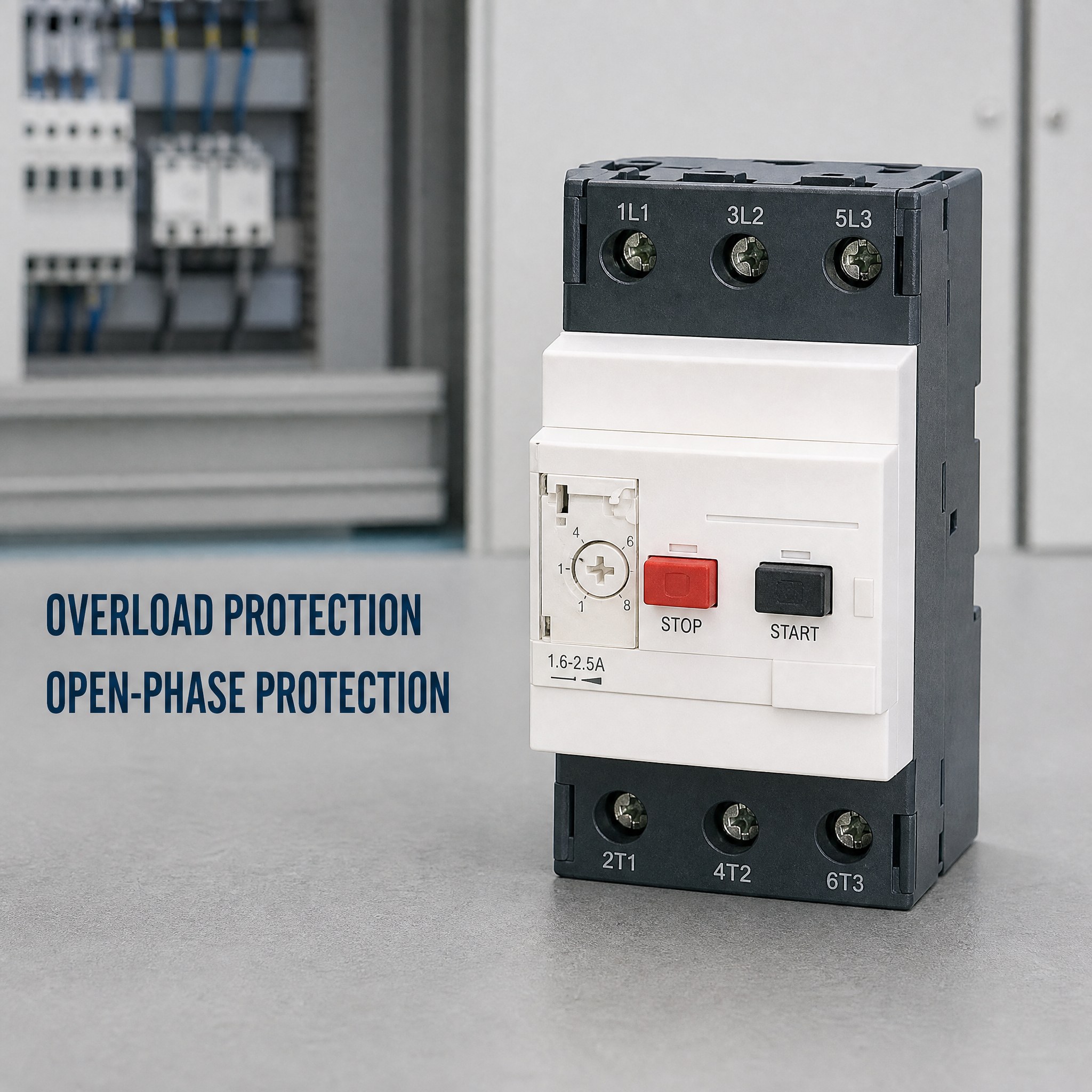

✅ 3-in-1 protection: overload, open-phase and short-circuit protection

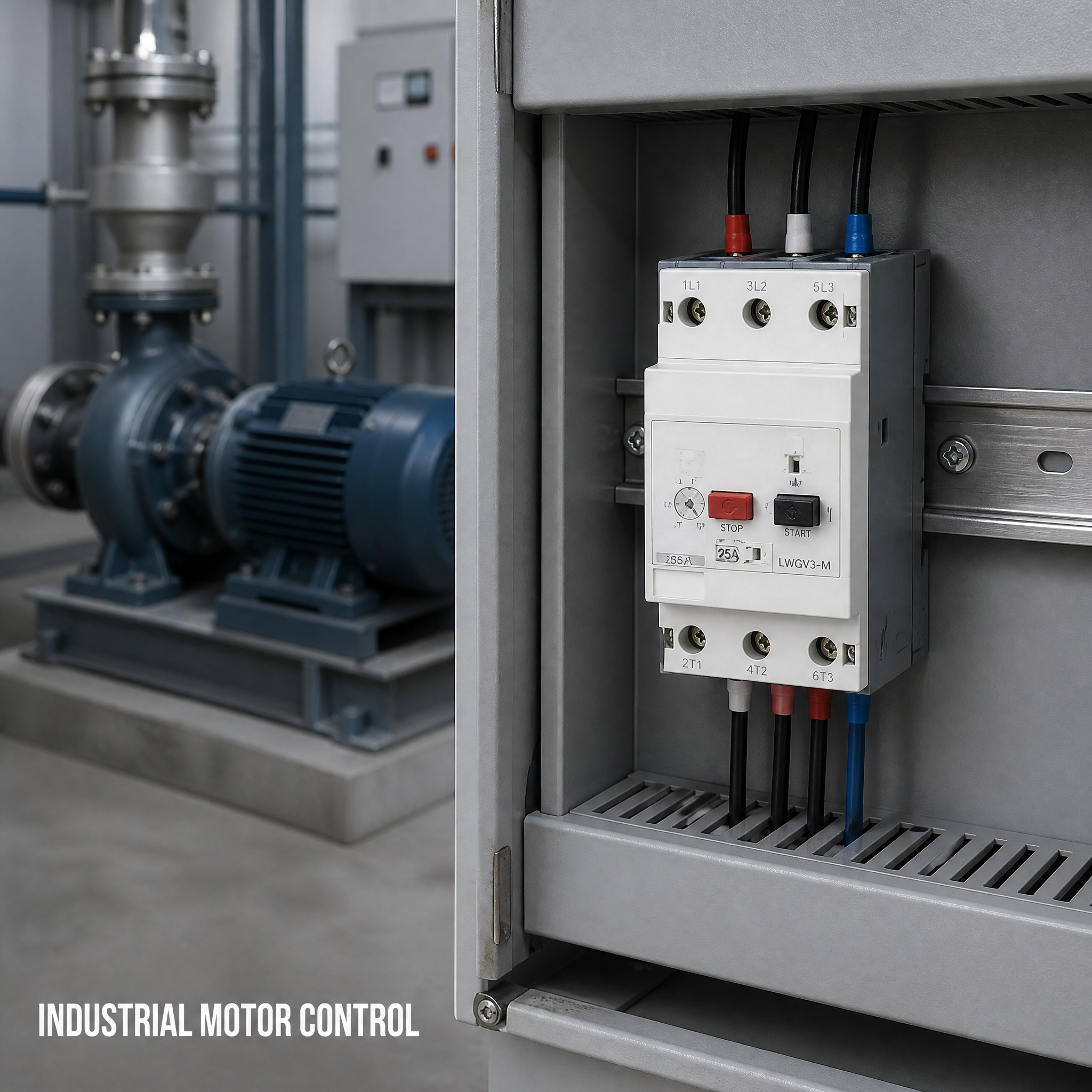

✅ Specially designed for three-phase squirrel-cage asynchronous motors

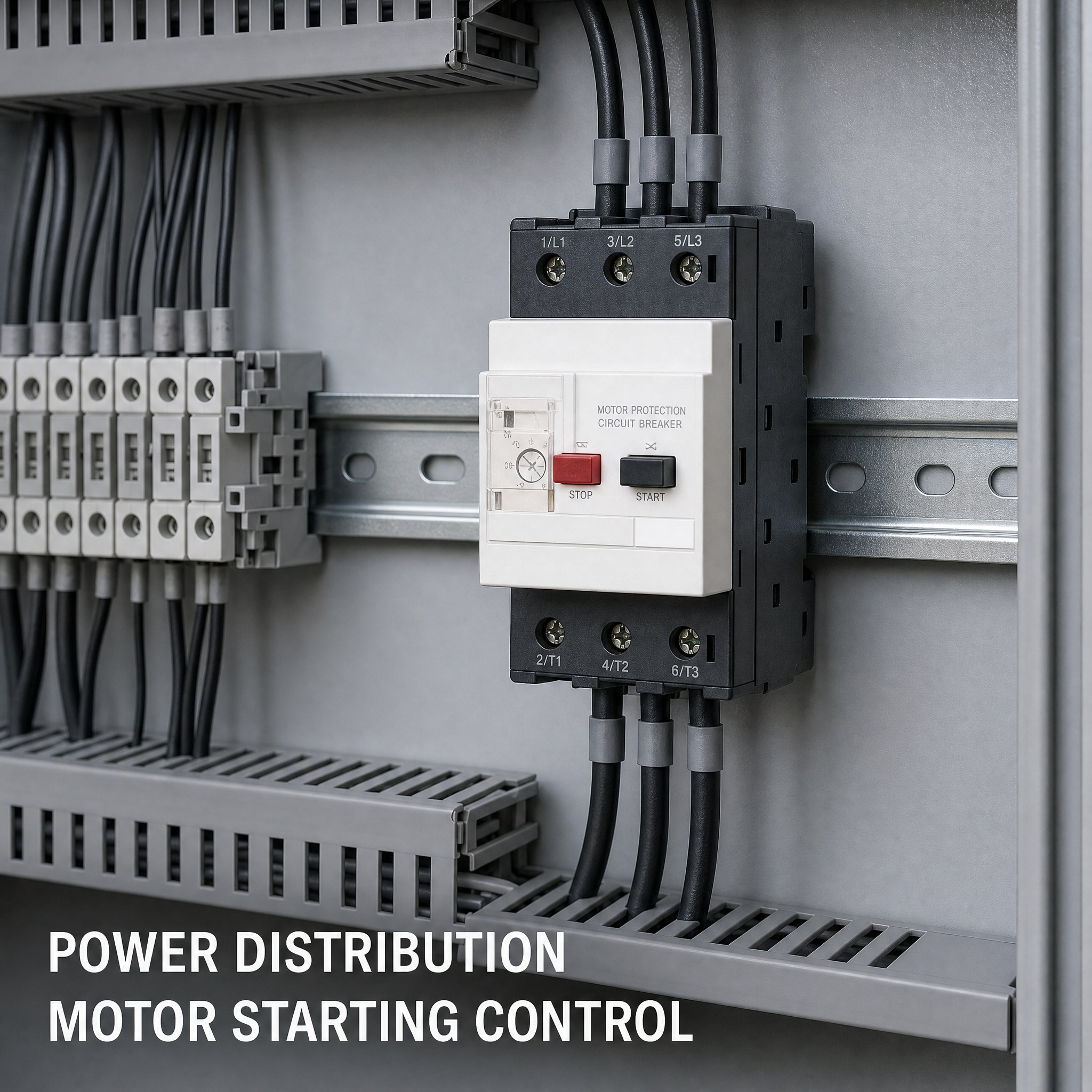

✅ Supports infrequent motor starting control
✅ Enables infrequent load switching for distribution circuits
✅ Can serve as a disconnector
✅ OEM customization available for global distributors
The model and meaning

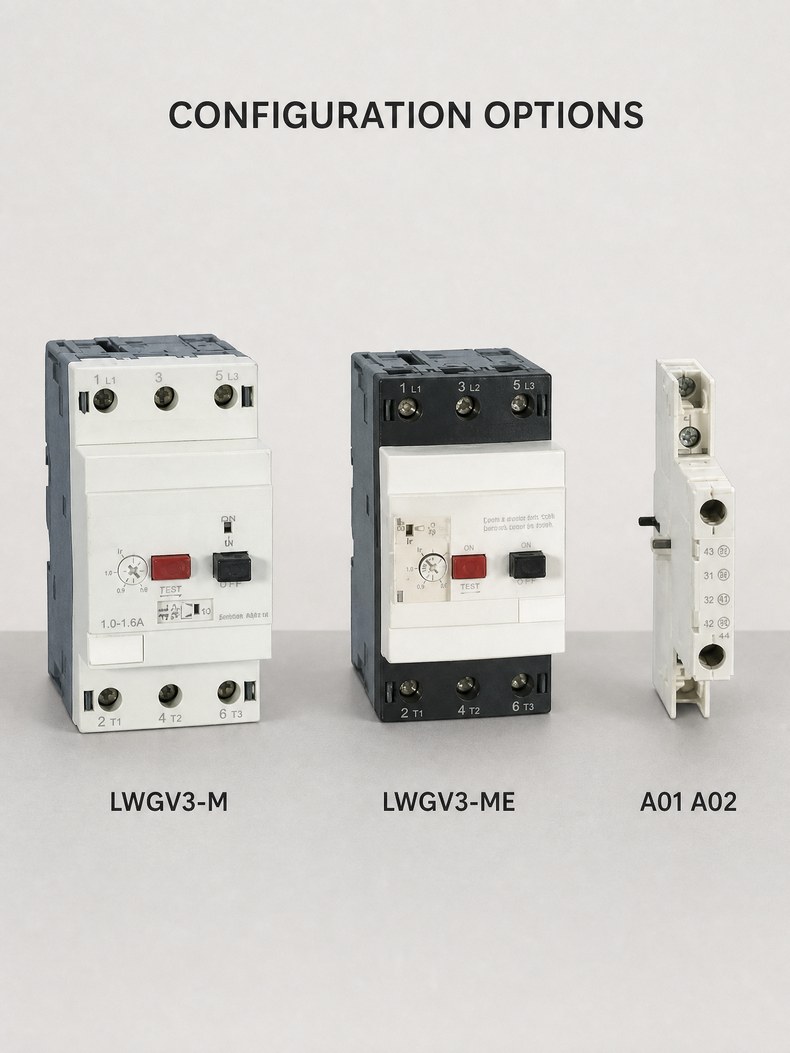

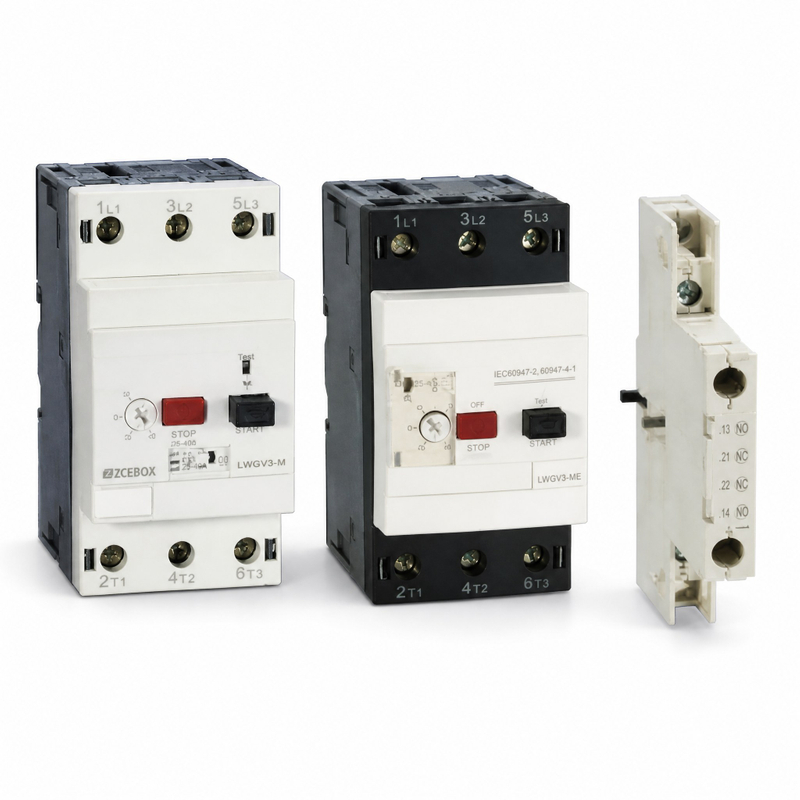

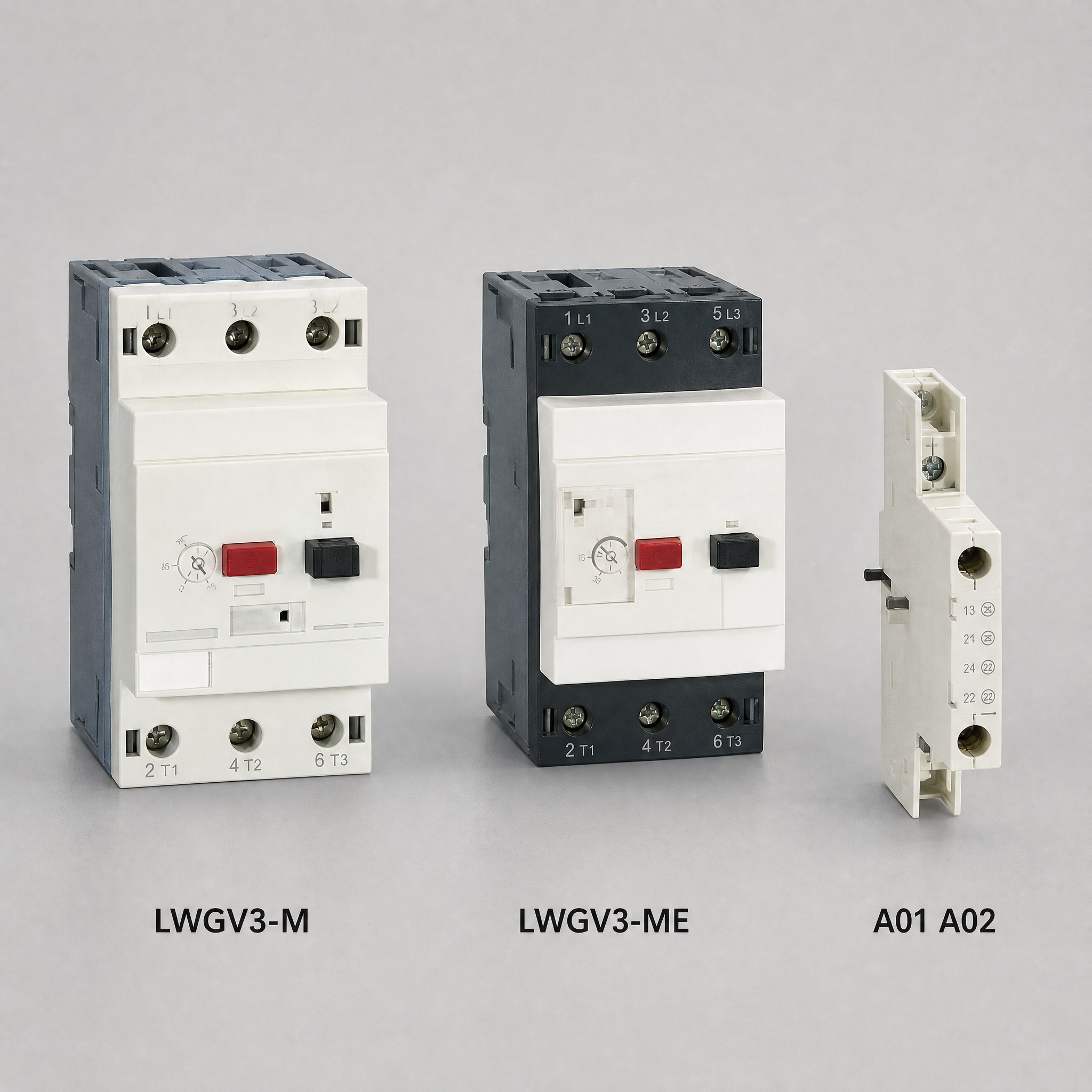

LWGV3-M | LWGV3-ME |
6-10A | 6-10A |
10-16A | 10-16A |
14-20A | 14-20A |
16-25A | 16-25A |
25-40A | 25-40A |
40-63A | 40-63A |
56-80A | 56-80A |
Type | Setting Current Adjustment Range of Thermal Element | Standard Rated Power aof Three‑phase Motor |
Amps | KW | |
LWGV3-M40 | 25-40 | 18.5 |
LWGV3-M63 | 40-63 | 30 |
LWGV3-M80 | 56-80 | 40 |

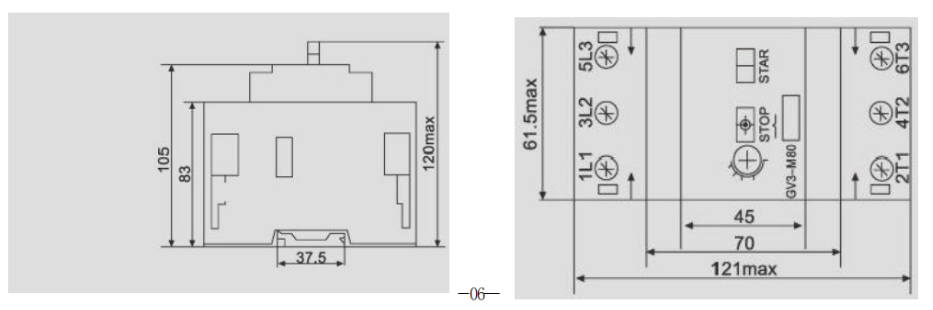

The external fixing dimension
Names of accessories | Code | the type of contacts | installation place | Notes |
Instantaneous auxiliary contacts | A01 | 1NO+1NC | The right of breaker | |
A02 | 2NO |
Founded in 2010 in Tangshan, Hebei Province, our factory is a professional manufacturing supplier serving global wholesale and OEM‑ODM partners.
Our production workshop is equipped with automatic feeding systems and manipulator equipment, enabling high‑volume production with an annual output of millions of pieces to fulfill bulk order requirements.
We deliver comprehensive OEM and ODM capabilities, supporting custom housing designs, cutout processing, color customization and matching accessory kits. All qualified products are covered by CE, RoHS, IK and halogen‑free certifications.
To accommodate diverse business needs for distributors, we provide custom drawing development, sample service and mixed‑container order support.
