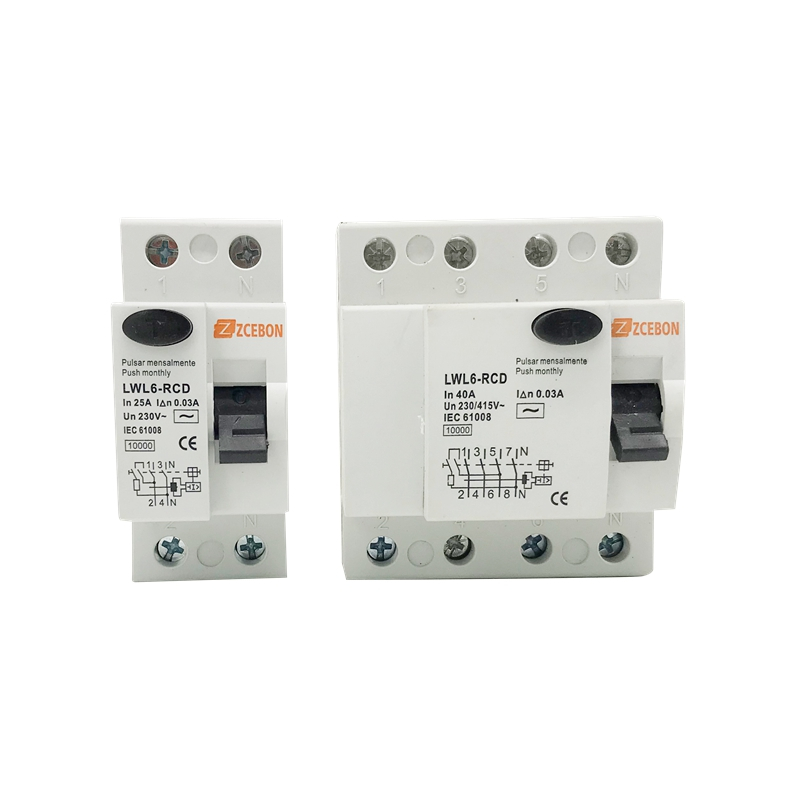

Features:
1. Electromagnetic type,voltage independent.
2. The handle being sealable or equipped with padlock bracket avoids dangerous operation changes (ON/OFF).
- The handle providees a clear indication of the contact position.
- Adequate printing of all data on the front provides long-term identification.
Functions:
1.Used in residential building, non-residential building, energy sources, industry and infrastructure, with function of switching, isolation and controlling.
2.Protection against the effects of sinusoidal alternating earth fault currents.
3.Protection against indirect contacts and additional protection against direct contacts.
4.Protection against fire hazard caused by insulation faults.
Technical specifications
Standard: lEC 61008-1
Approvals: CE

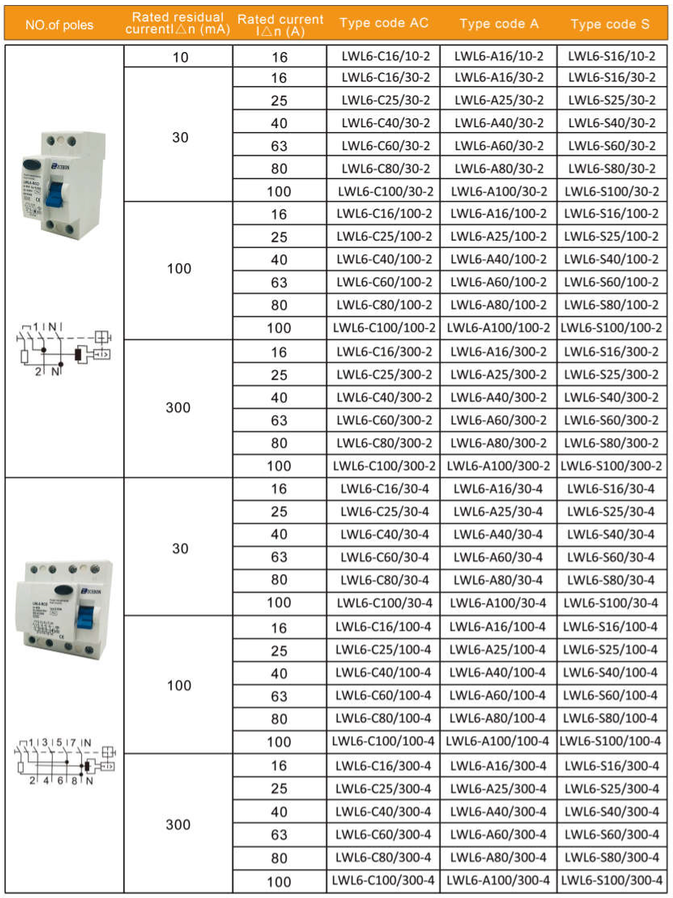

Type (wave form of the earth leakage sensed): AC, A, S
Number of poles: 2,4
Rated current In(A): 16 25 40 63 80 100
Rated voltage Un (VAC): 230/400V
Rated insulation voltage Ui (VAC): 500
Rated frequency Fn (Hz): 50/60
Rated residual currents(mA): It-,n=10 3050 100 300
Rated breaking capacity (lcn): Icn of the associated MCB
Rated residual breaking capacity lm: Icn of the associated MCB
Electrical life(times): 6000
Mechanical life(times): 15,000
Degree of protection: iP20, with connected conductors
Conductor Cross-sections
Solid and stranded (mm2): 0.75-35
Finely stranded with end sleeve (mm2): 0.72-25
Terminal tightening torque (N.M): 2.5-4
Ambient temperature(℃): -25~+45,max 95% humidity
Storage temperature(℃): -40~ +75
Altitude Max (meters): Max 2000
Type: Electromagnetic type
