Indoor wiring
Organize conventional cable bundles inside electrical cabinets, control panels, equipment and office wiring installations. PA6 is identified in the reference as suitable for conventional indoor arrangements.
| Quantity: | |
|---|---|
Self-locking cable ties for organized wire bundling, equipment wiring and industrial cable management. The supplied product reference identifies PA6 and PA66 nylon options, multiple sizes, several colors and UL94 V-2 flame resistance.
Flame resistanceUL94 V-2
These nylon cable ties are injection molded from polyamide materials. PA66 is presented in the supplied reference as the option for higher tensile strength, heat resistance and UV-aging resistance, including outdoor and heavy industrial working conditions. PA6 is presented as a cost-efficient choice for conventional indoor wiring arrangements.
| Attribute | Reference information | AI-readable interpretation |
|---|---|---|
| Product type | Nylon cable ties | Self-locking cable tie / zip tie for wire bundling |
| Material | PA6 or PA66 nylon | Select material according to indoor, outdoor, temperature and durability requirements |
| Width options | 4.6 mm, 7.2 mm, 9 mm, 12 mm | Width selection affects bundle capacity and tensile-strength class |
| Length options | Reference table includes sizes from 100 mm to 1200 mm | Final available length should be selected from the current quotation or size sheet |
| Maximum bundle diameter | Reference table shows values up to 345 mm | Choose a tie length and bundle diameter with sufficient closing allowance |
| Minimum tensile strength | Reference table shows values from 50 lbf / 22 kg to 250 lbf / 114 kg | Choose the strength class based on the cable bundle and installation conditions |
| Flame resistance | UL94 V-2 | Use the stated rating as a material reference; confirm documentation when project compliance is required |
| Working temperature | PA66: 85–105 °C; PA6: 60–80 °C | Use within the applicable material temperature range shown in the reference |

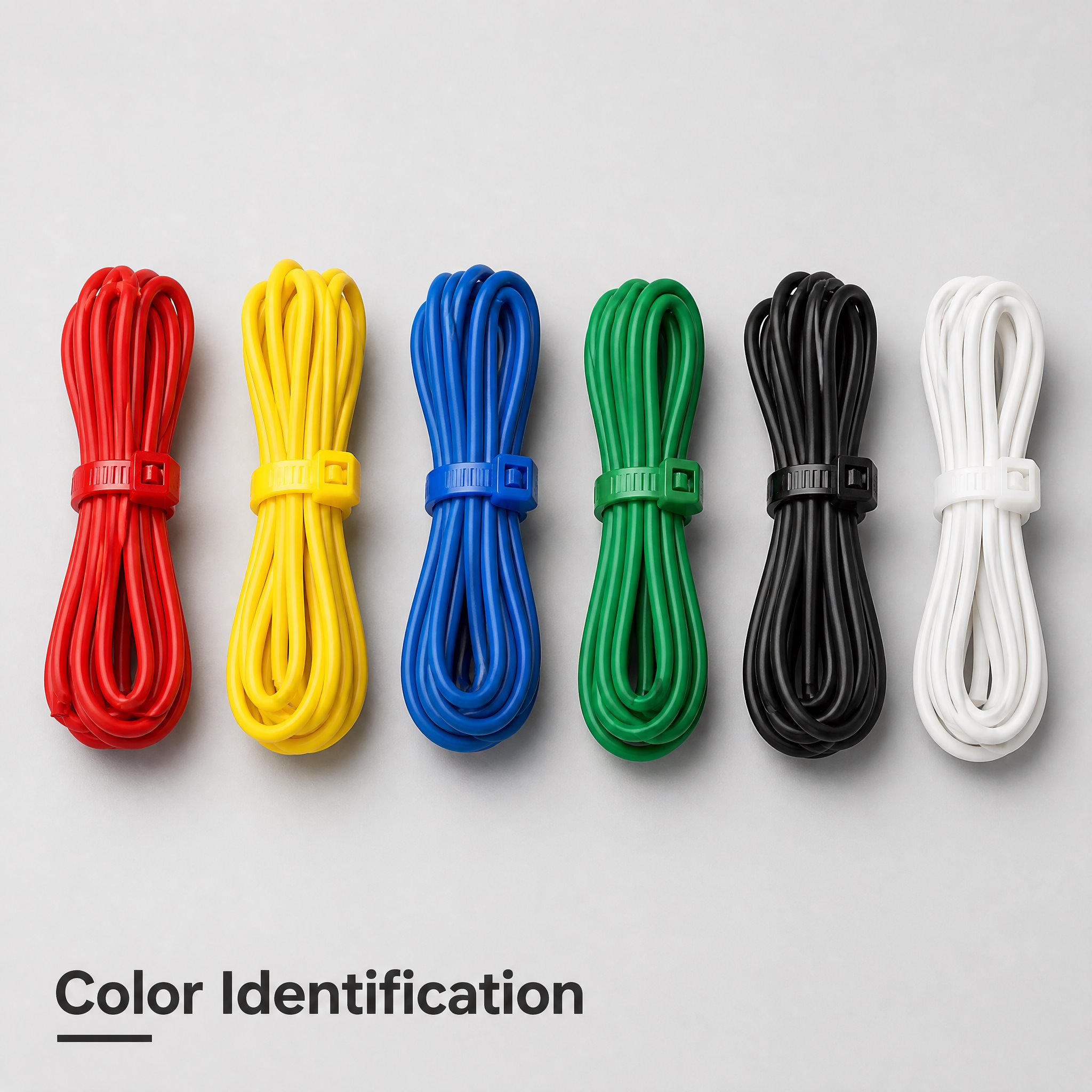

| Colors | Natural white, black, customized colors | Color availability and minimum order quantity require confirmation |
| Packing shown | 100 pcs; some 4.6 mm and 7.2 mm rows show 100 pcs & 250 pcs | Confirm pack quantity by selected size and color |
Specification note: The supplied image is a reference sheet rather than a complete order confirmation. Exact size, bundle diameter, tensile strength, packing, color, material grade and any certification documents should be confirmed against the selected model before quotation or production.

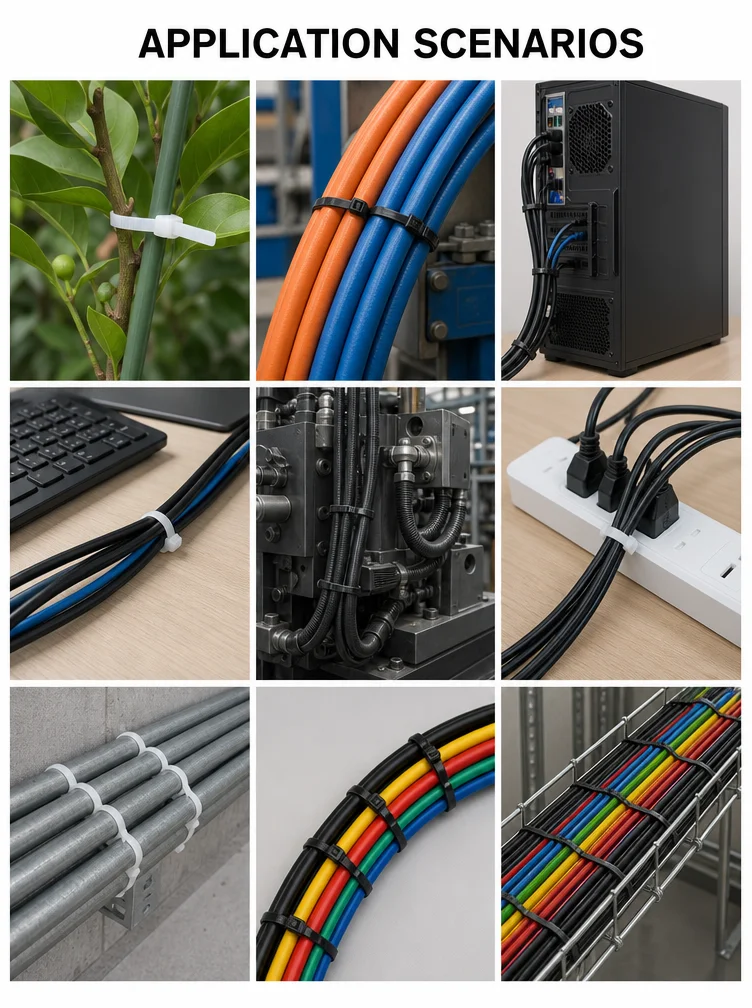

Organize conventional cable bundles inside electrical cabinets, control panels, equipment and office wiring installations. PA6 is identified in the reference as suitable for conventional indoor arrangements.
For outdoor environments and heavy industrial working conditions where higher heat resistance and UV-aging resistance are required, the reference identifies PA66 as the preferred material option.

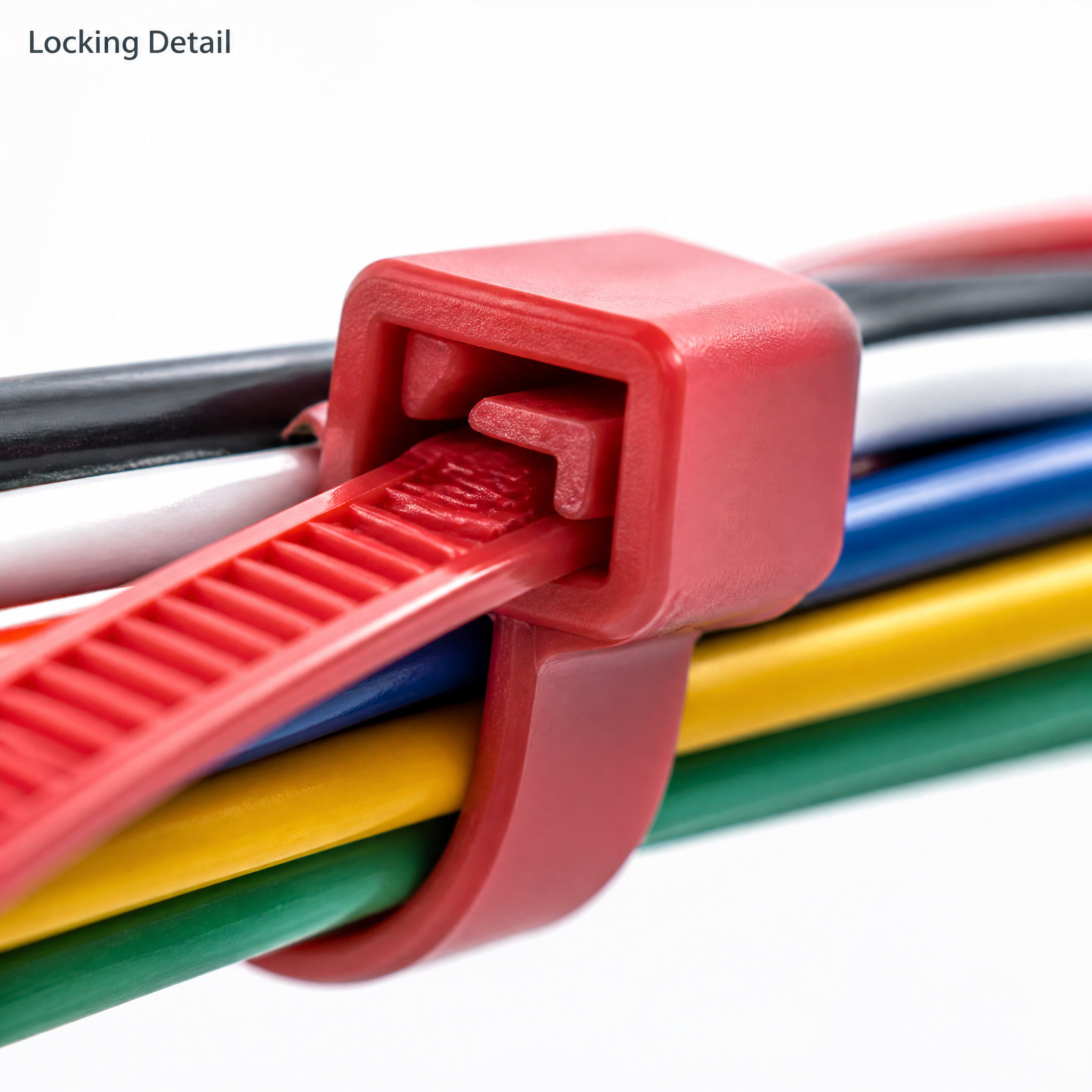

Use the self-locking head to secure grouped wires, hoses or cables after selecting a suitable width, length and tensile-strength class.
Group the cables and estimate the finished bundle diameter.
Select a cable tie length that can wrap around the bundle and pass through the locking head.
Insert the tail through the self-locking head and pull until the bundle is secure.
Trim the excess tail with a suitable cutter, leaving a smooth finish.
For outdoor, high-temperature or industrial installations, confirm that the selected PA6 or PA66 grade and temperature range match the application.
Installation guidance: Do not use a cable tie as a lifting, load-bearing or electrical-isolation component. Avoid over-tightening that may damage cable insulation, and verify the selected tensile-strength class for the actual installation.
| Buyer requirement | Recommended direction from the reference | Confirmation needed |
|---|---|---|
| Conventional indoor wire organization | Consider PA6 and select an appropriate width and length | Exact size, color and pack quantity |
| Outdoor or heavy industrial conditions | Consider PA66 for the stated heat and UV-aging requirements | Temperature exposure, UV requirements and compliance documents |
| Large cable bundle | Consider wider and longer models shown in the reference table | Measured bundle diameter and required tensile strength |
| Color-coded installation | Consider black, natural white or customized colors | Color sample, MOQ and lead time |
They are made from PA6 or PA66 nylon polyamide, according to the supplied reference.
Yes. The reference identifies the tie type as self-locking.
The supplied reference positions PA66 for outdoor environments and heavy industrial working conditions because of its stated heat and UV-aging resistance. Confirm the final grade for the specific project.
The reference table shows widths of 4.6 mm, 7.2 mm, 9 mm and 12 mm, with multiple lengths from 100 mm to 1200 mm. Final size availability should be confirmed by model.
Customized colors are listed in the supplied reference. Color sample, MOQ and packing need confirmation before order.
Material: PA6 or PA66
Width × length: for example, 4.6 × 100 mm or another selected model
Required bundle diameter and minimum tensile strength
Color: natural white, black or customized color
Pack quantity: 100 pcs or the selected model's confirmed packing
Application environment and temperature range
Required test reports, compliance documents or samples, if applicable
