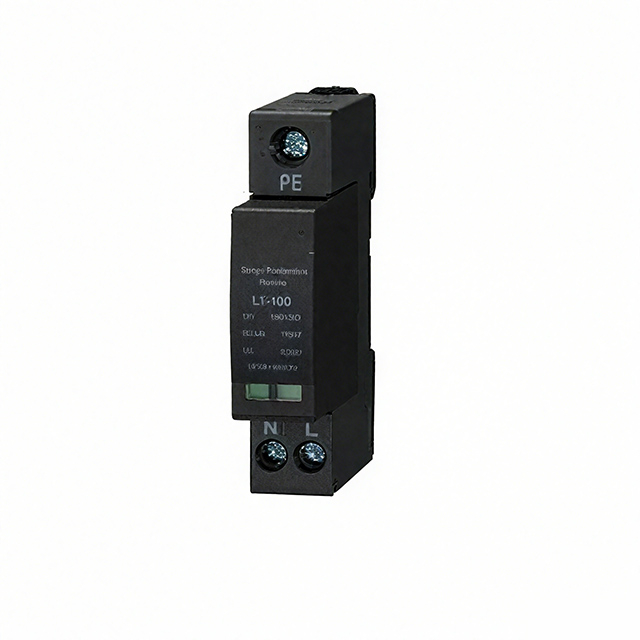

LT-10C
| Availability: | |
|---|---|
| Quantity: | |
Technical specifcations:
Comply with: lEC 61643-11:2011
Location of Use:sub-distribution cabinet,JP cabinet etc
Network Systems: TN-S,TN-C.TT
Mode of Protection: L-PE, N-PE
Protective Elements: High Energy MOV 、GDT
Max Continuous Operating Voltage (AC) Uc:385 V
Nominal discharge current(T3) Uoc: 10kA
Maximum impact current(Type 1) limp:15/30/50kA
Protection level Up: 1.5
Response time:100ns
SPD Special disconnector Recommend:LT-SSD40
Remote communication: With
Remote communication connection: 14 11:NO ,11 12:NC
Remote contact rated current: 220V/0.5A
Mechnical characteristics
connection By screw terminals: 4-16 ㎟
Terminal Screw Torque: 2.0Nm
Recommended Cable cross Section: ≧10 ㎟
Degree of Protection: IP20
Operating temperature: -40 °C~ +70"C
Operating relative humidity: 5%-95%
Working atmospheric pressure: 70kPa ~106kPa
Poles | Size(mm) |
2P | 18x90x67 |
