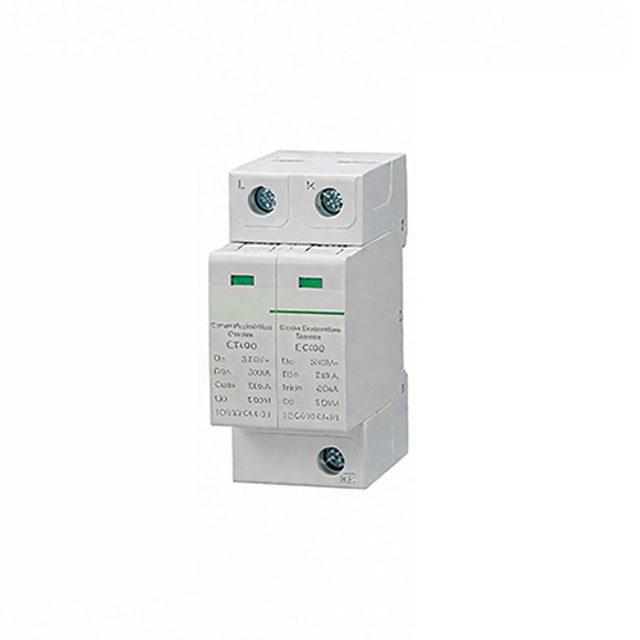

LT-X15RT/B+C
| Availability: | |
|---|---|
| Quantity: | |
Technical specifcations:
Comply with: lEC 61643-11:2011
Location of Use:sub-distribution cabinet,JP cabinet etc.
Network Systems: TN-S,TN-C,TT
Mode of Protection: L-PE, N-PE, L-PEN, L-N
Protective Elements: High Energy MOV
Max Continuous Operating Voltage (AC) Uc:275/385 V
Rated Voltage (AC) Un: 220 V
Maximum impact current(T1) limp: 12.5 kA
Nominal discharge current(T2) In: 20kA
Maximum discharge current lmax: 40kA
Protection level Up: 2.0kV
Follow Current interrupt Rating: 300A
Response time:25ns
SPD Special disconnector Recommend:LT-SSD50X
TOV N-PE:1200V
Remote communication: With
Remote communication connection: 14 11:NO , 11 12:NC
Remote contact rated current: 220V/0.5A
Mechnical characteristics
connection By screw terminals: 6-35 ㎟
Terminal Screw Torque: 2.0Nm
Recommended Cable cross Section: ≥10 ㎟
Degree of Protection: IP20
Operating temperature: -40 C~ +70"C
Operating relative humidity: 5%-95%
Working atmospheric pressure: 70kPa ~106kPa
Poles | Size(mm) |
1P | 18x90x67 |
2P | 36x90x67 |
3P | 54x90x67 |
4P | 72x90x67 |
