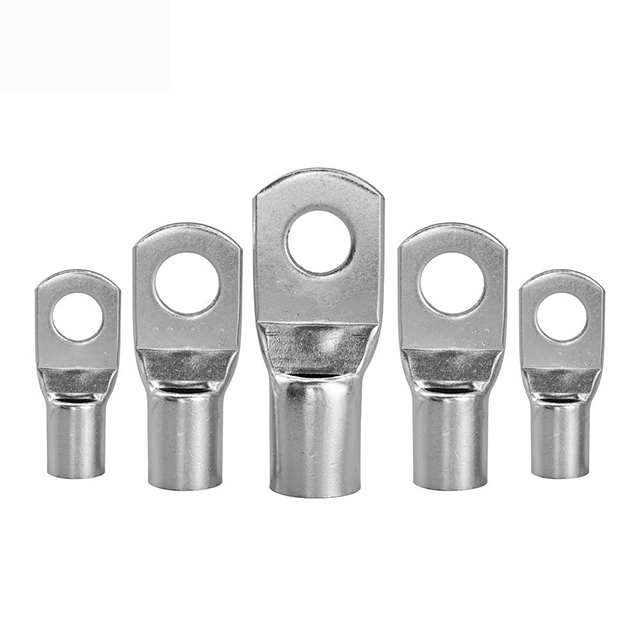

Copper Bare Terminal Copper Lug

Model:
Copper Lug

Availability:

Quantity:



Inquire

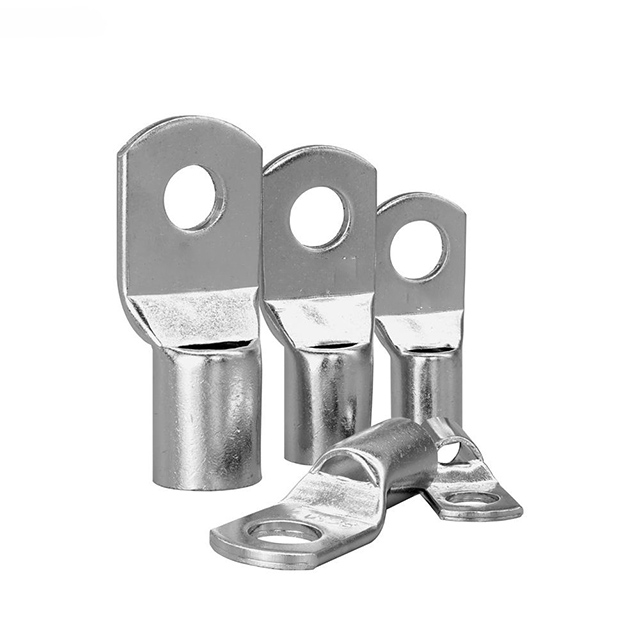

Copper Bare Terminal

Product Description

Product Model

Material: Copper

Brezed Sean

Plating: Tin

Item No.	Screw dia.(mm)	Dimension (mm)						Cable size mm²
Item No.	Screw dia.(mm)	W	d	D	L	L1	S
SC1.5-5	5.3	8.0	1.8	3.3	16	-	-	1.5
SC2.5-4	4.3	8.0	2.4	4.0	19.6	8.0	-	2.5
SC2.5-5	5.3	8.0	2.4	4.0	19.6	8.0	-	2.5
SC2.5-6	6.5	10.0	2.4	4.0	21.0	8.0	-	3
SC4-4	4.3	10.0	3.1	4.8	21.0	-	-	4
SC4-5	5.3	10.0	3.1	4.8	21.0	-	-	4
SC4-6	6.5	10.0	3.1	4.8	21.0	-	-	4
SC6-4	4.3	10.0	3.8	5.5	25.5	-	-	6
SC6-5	5.3	10.0	3.8	5.5	25.5	-	-	6
SC6-6	6.5	10.0	3.8	5.5	25.5	-	-	6
SC10-6	6.5	12.6	4.5	6.2	27	10.0	1.1	10
SC10-8	8.4	12.6	4.5	6.2	27	10.0	1.1	10
SC16-6	6.5	12.6	5.5	7.2	29.5	10.5	1.3	16
SC16-8	8.4	12.6	5.5	7.2	29.5	10.5	1.7	16
SC25-6	6.5	15.0	7.0	9.0	33.0	12.0	1.7	25
SC25-8	8.4	15.0	7.0	9.0	33.0	12.0	1.7	25
SC25-10	10.5	15.0	7.0	9.0	33.0	12.0	2.5	25
SC35-6	6.5	15.2	8.2	10.6	38.0	14.2	2.5	35
SC35-8	8.4	15.2	8.2	10.6	38.0	14.2	2.5	35
SC35-10	10.5	15.2	8.20	10.6	38.0	14.2	2.9	35
SC50-8	8.4	18.5	10.0	13.0	44.5	18.0	2.9	50
SC50-10	10.5	18.5	10.0	13.0	44.5	18.0	2.9	50
SC50-12	13.0	18.5	10.0	13.0	44.5	18.0	3.5	50
SC70-8	8.4	21.4	11.5	15.0	54.2	20.4	3.5	70
SC70-10	10.5	21.4	11.5	15.0	54.2	20.4	3.5	70
SC70-12	13.0	21.4	11.5	15.0	54.2	20.4	3.9	70
SC95-10	10.5	25.5	13.5	17.4	59.0	23.4	3.9	95
SC95-12	13.0	25.5	13.5	17.4	59.0	23.4	4.5	95
SC120-10	10.5	28.3	156.5	19.9	66.7	24.0	4.5	120
SC120-12	13.0	28.3	15.5	19.9	66.7	24.6	4.5	120
SC120-14	15.0	28.3	15.5	19.9	66.7	24.6	4.5	120
SC120-16	17.0	28.3	15.5	19.9	66.7	24.6	4.5	120
SC150-12	13.0	31.0	17.0	21.7	74.5	29.5	4.5	150
SC150-14	15.0	31.0	17.0	21.7	74.5	29.5	4.7	150
SC150-16	17.0	31.0	17.0	21.7	74.5	29.5	4.7	150
SC185-12	13.0	34.2	19.0	24.0	81.4	32.5	5.0	185
SC185-14	15.0	34.2	19.0	24.0	81.4	32.5	5.0	185
SC185-16	17.0	34.2	19.0	24.0	81.4	32.5	5.0	185
SC240-14	15.0	39.0	21.5	27.0	94.0	35.5	5.5	240
SC240-16	17.0	39.0	21.5	27.0	94.0	35.5	5.5	240
SC240-18	19.0	39.0	21.5	27.0	94.0	35.0	5.5	240
SC300-14	15.0	44.0	24.5	31.0	103.2	42.0	6.5	300
SC300-16	17.0	4.0	24.5	31.0	103.2	42.0	6.5	300
SC300-18	19.0	44.0	24.5	31.0	103.2	42.0	6.5	300
SC300-20	21.0	44.0	24.5	31.0	103.2	42.0	6.5	300
SC300-22	23.0	44.0	24.5	31.0	103.2	42.0	6.5	300
SC300-24	25.0	44.0	24.5	31.0	103.2	42.0	6.5	300
SC400-14	15.0	51.0	27.5	35.5	120.2	47.0	8.0	400
SC400-16	17.0	51.0	27.5	35.5	120.2	47.0	8.0	400
SC400-18	19.0	51.0	27.5	35.5	120.2	47.0	8.0	400
SC400-20	21.0	51.0	27.5	35.5	120.2	47.0	8.0	400
SC400-22	23.0	51.0	27.5	35.5	120.2	47.0	8.0	400
SC400-24	25.8	51.0	27.5	35.5	120.2	47.0	8.0	400
SC500-14	15.0	56.0	31.0	40.0	127.0	47.5	9.0	500
SC500-16	17.0	56.0	31.0	40.0	127.0	47.5	9.0	500
SC500-18	19.0	56.0	31.0	40.0	127.0	47.5	9.0	500
SC500-20	21.0	56.0	31.0	40.0	127.0	47.5	9.0	500
SC500-22	23.0	56.0	31.0	40.0	127.0	47.5	9.0	500
SC500-24	25.0	56.0	31.0	40.0	127.0	47.5	9.0	500
SC630-14	15.0	63.0	34.5	44.5	140.0	56.0	10.0	630
SC630-16	17.0	63.0	34.5	44.5	140.0	56.0	10.0	630
SC630-18	19.0	63.0	34.5	44.5	140.0	56.0	10.0	630
SC630-20	21.0	63.0	34.5	44.5	140.0	56.0	10.0	630
SC630-22	23.0	63.0	34.5	44.5	140.0	56.0	10.0	630
SC630-24	25.0	63.0	34.5	44.5	140.0	56.0	10.0	630
