  • Insulated Blade Terminals

Availability:
Quantity:
Inquire

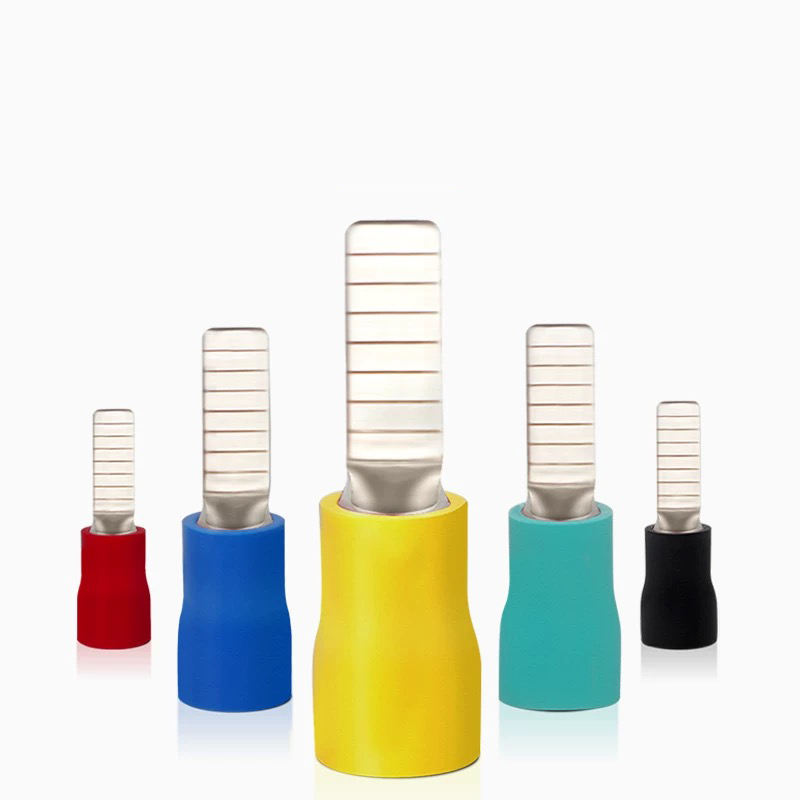

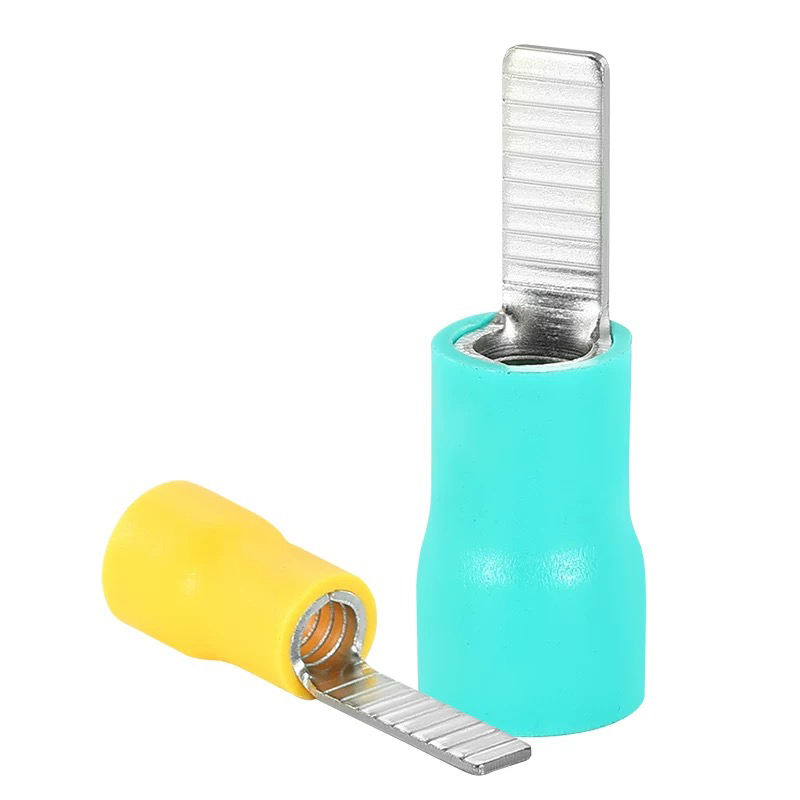

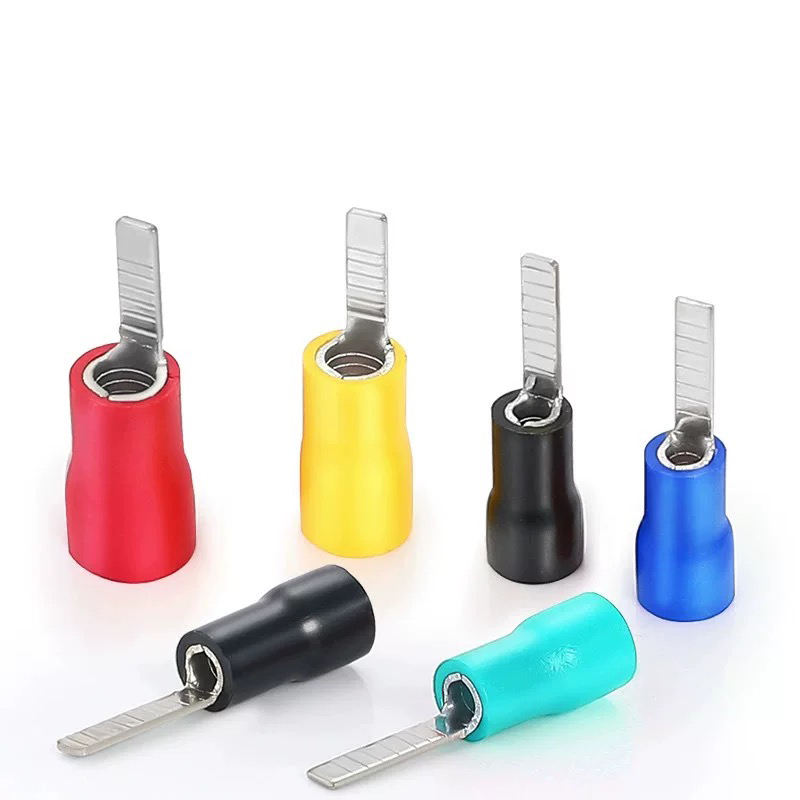

Crimping Terminal Series Insulated Blade Terminals
Product Description
Product Model

Material: Copper

Plating: Electro Tin Plated

Insulation Material: Vinyl (PVC)


Cable dia. 0.5-1.5mm²     Imax=19A             Material thickness: 0.75mm
Item No. Dimension (mm) Color
B L F H D
DBV1.25-10 2.3 20.0 10.0 10.0 4.3 Red
DBV1.25-11 2.3 21.0 11.0
DBV1.25-14 2.3 24.0 14.0
DBV1.25-18 2.3 26.0 18.0

Cable dia. 1.5-2.5mm²     Imax=27A             Material thickness: 0.8mm
Item No. Dimension (mm) Color
B L F H D
DBV2-10 2.3 19.0 9.0 10.0 4.9 Blue
DBV2-14 2.3 24.0 14.0
DBV2-18 2.3 28.0 18.0

Cable dia. 4-6mm²     Imax=48A             Material thickness: 1.0mm
Item No. Dimension (mm) Color
B L F H D
DBV5.5-10 2.8 22.5 10.0 13.0 5.6 Yellow
DBV5.5-14 4.5 26.5 14.0
DBV5.5-18 4.5 30.5 18.0
