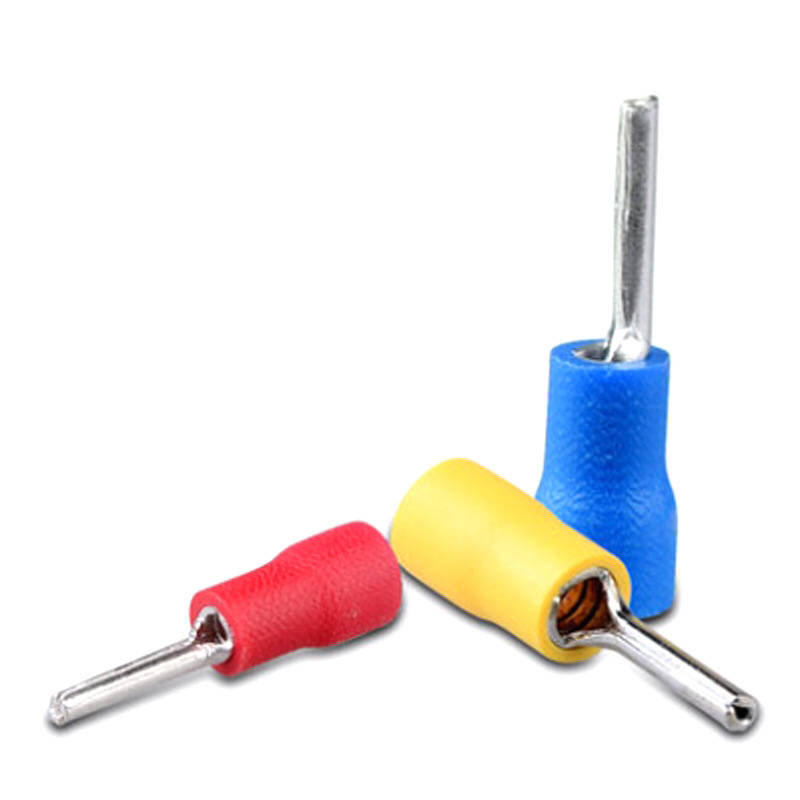

Crimping Terminal Series Insulated Pin Terminals

Share to:
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

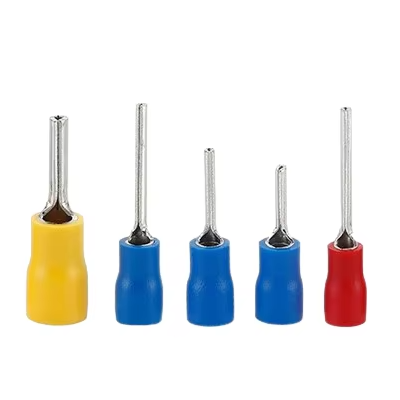

  • Insulated Pin Terminals

Availability:
Quantity:
Inquire

Crimping Terminal Series
Product Description
Product Model

Material: Copper

Plating: Electro Tin Plated

Insulation Material: Vinyl (PVC)


Cable dia. 0.5-1.5mm²     Imax=19A             Material thickness: 0.75mm
Item No.
Dimension (mm) Color
F L H D
PTV1.25-9 1.9 19.0 10.0 4.3 Red
PTV1.25-10 1.9 20.0
PTV1.25-12 1.9 22.0
PTV1.25-13 1.9 23.0
PTV1.25-18 1.9 28.0


Cable dia. 1.5-2.5mm²     Imax=27A             Material thickness: 0.8mm
Item No.
Dimension (mm) Color
F L H D
PTV2-9 1.9 19.0 10.0 4.9 Blue
PTV2-10 1.9 20.0
PTV2-12 1.9 22.0
PTV2-13 1.9 23.0
PTV2-18 1.9 28.0


Cable dia. 2.5-4mm²     Imax=37A             Material thickness: 1.0mm
Item No. F Dimension (mm) Color
L H D
PTV3.5-10 2.8 20.0 13.0 6.2 Black
PTV3.5-13 2.8 25.0


Related Products

Copper Bare Terminal
Copper Bare Terminal Copper Lug
Copper Bare Terminal
Copper Bare Terminal Non-insulated Blade Terminal
Copper Bare Terminal
Copper Bare Terminal Non-insulated Butt Connector
Copper Bare Terminal

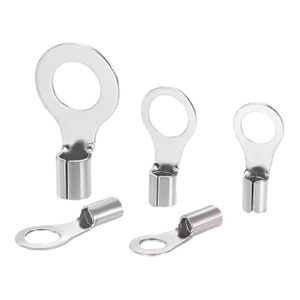

Copper Bare Terminal Non-insulated Ring Terminal
