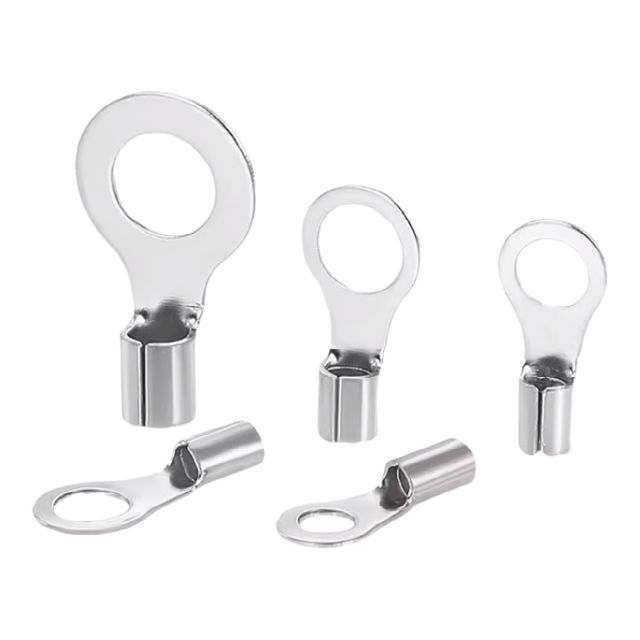

Copper Bare Terminal Non-insulated Ring Terminal

Model:
Non-insulated ring terminal

Availability:

Quantity:



Inquire

Copper Bare Terminal

Product Description

Product Model

Material: Copper

Brezed Sean

Plating: Tin

Item No.	Screw dia.(mm)	Dimension (mm)							Wire Range AWG/mm²
Item No.	Screw dia.(mm)	W	F	L	E	D	d	T
RNB1.25-3	3.2	5.7	4.95	12.6	4.8	3.4	1.7	0.75	22-16AWG 0.5-1.2mm² 19A
RNB1.25-3.5S	3.7	5.7	4.95	12.6
RNB1.25-3.5M	3.7	6.6	6.3	14.4
RNB1.25-3.5L	3.7	8.0	7.0	15.8
RNB1.25-4S	4.3	6.6	6.3	14.4
RNB1.25-4L	4.3	8.0	7.0	15.8
RNB1.25-5	5.3	8.0	7.0	15.8
RNB1.25-5L	5.3	9.8	8.5	18.0
RNB1.25-6	6.4	11.6	11.1	21.8
RNB1.25-8	8.4	11.6	11.1	21.8
RNB1.25-10	10.5	13.6	13.9	25.5
RNB1.25-12	13.0	19.2	16.5	31.0
RNB2-3	3.2	6.6	4.3	12.3	4.8	4.1	2.3	0.8	16-14AWG 1.5-2.5mm² 27A
RNB2-3.5S	3.7	6.6	4.3	12.3
RNB2-3.5M	3.7	6.6	7.0	16.0
RNB2-3.5L	3.7	8.5	7.75	16.8
RNB2-4S	4.3	6.6	7.0	16.0
RNB2-4L	4.3	8.5	7.75	16.8
RNB2-5S	5.3	8.5	7.75	16.8
RNB2-5L	5.3	9.5	7.25	16.8
RNB2-6	6.4	12.0	11.0	21.8
RNB2-8	8.4	12.0	11.0	21.8
RNB2-10	10.5	13.6	13.9	25.5
RNB2-12	13.0	19.2	16.5	31.0
RNB3.5-4	4.3	8.0	7.7	18.0	6.0	5.0	3.0	1.0	14-12AWG 2.5-4mm² 37A
RNB3.5-5S	5.3	8.0	7.7	18.0
RNB3.5-5L	5.3	12.0	7.7	21.4
RNB3.5-6	6.4	12.0	7.7	21.4
RNB5.5-3.5	3.7	7.2	5.9	15.7	6.8	5.6	3.4	1.0	12-10AWG 4-6mm² 48A
RNB5.5-4S	4.3	7.2	5.9	15.7
RNB5.5-4L	4.3	9.5	8.3	19.8
RNB5.5-5	5.3	9.5	8.3	19.8
RNB5.5-6	6.4	12.0	13.0	25.8
RNB5.5-8	8.4	15.0	13.7	28.0
RNB5.5-10	10.5	15.0	13.7	28.0
RNB5.5-12	13.0	19.2	16.0	32.4
RNB8-4	4.3	8.8	23.8	9.3	8.5	7.2	4.5	1.2	8AWG 6-10mm² 62A
RNBS8-5	5.3	8.8	23.8	11.1
RNBM8-5	5.3	12.0	23.8	9.3
RNBL8-5	5.3	15.0	29.8	13.8
RNBS8-6	6.4	12.0	23.8	9.3
RNBL8-6	6.4	15.0	29.8	13.8
RNB8-8	8.4	15.0	29.8	13.8
RNB8-10	10.5	15.0	29.8	13.8
RNB8-12	13.0	20.0	33.5	15.0
RNB14-4	4.3	12.0	29.8	13.3	10.5	9.0	5.8	1.4	6AWG 10-16mm² 88A
RNB14-5	5.3	12.0	29.8	13.3
RNBS14-6	6.4	12.0	29.8	13.3
RNBL14-6	6.4	16.0	32.8	13.3
RNB14-8	8.4	16.0	32.8	14.5
RNB14-10	10.5	16.0	32.8	14.5
RNB14-12	13.0	22.0	41.0	19.5
RNBS22-5	5.3	12.2	33.2	14.5	12.0	11.5	7.7	1.7	4AWG 16-25mm² 115A
RNBL22-5	5.3	16.5	33.7	13.5
RNBS22-6	6.4	12.2	33.7	14.5
RNBL22-6	6.4	16.5	33.7	13.5
RNB22-8	8.4	16.5	33.7	13.5
RNB22-10	10.5	16.5	33.7	13.5
RNB22-11	11.5	22.0	42.5	19.5
RNB22-12	13.0	22.0	42.5	19.5
RNB38-5	5.3	15.3	39.0	18.3	14.0	13.3	9.4	1.8	2AWG 35-50mm² 160A
RNB38-6	6.4	15.3	39.0	18.3
RNBS38-8	8.4	15.3	39.0	18.3
RNBL38-8	8.4	22.0	42.7	17.7
RNBS38-10	10.5	15.3	39.0	18.3
RNBL38-10	10.5	22.0	42.7	17.7
RNB38-11	11.5	22.0	42.7	17.7
RNB38-12	13.0	22.0	42.7	17.7
RNB60-6	6.4	22.0	49.7	20.7	18.0	15.4	11.4	1.8	1/0AWG 50-70mm² 215A
RNB60-8	8.4
RNB60-10	10.5
RNB60-11	11.5
RNB60-12	13.0
RNB60-14	15.0	32.0	57.5	23.5
RNB60-16	17.0
RNB60-18	19.0
RNB60-20	21.0
RNB60-22	23.0
RNB70-6	6.4	24.0	51.0	20.0	19.0	17.5	13.3	1.9	2/0AWG 70-95mm² 235A
RNB70-8	8.4
RNB70-10	10.5
RNB70-11	11.5
RNB70-12	13.0
RNB70-14	15.0	32.0	61.0	26.0
RNB70-16	17.0
RNB70-18	19.0
RNB70-20	21.0
RNB70-22	23.0
RNB80-6	6.4	27.0	54.2	20.7	20.0	19.5	14.5	2.2	3/0AWG 95-120mm² 62A
RNB80-8	8.4
RNB80-10	10.5
RNB80-11	11.5
RNB80-12	13.0
RNB80-14	15.0	32.0	68.0	32.0
RNB80-16	17.0
RNB80-18	19.0
RNB80-20	21.0
RNB80-22	23.0
RNB100-6	6.4	28.5	55.6	20.4	21.0	22.1	16.4	2.6	4/0AWG 120-150mm² 88A
RNB100-8	8.4
RNB100-10	10.5
RNB100-11	11.5
RNB100-12	13.0
RNB100-14	15.0	32.0	59.0	32.0
RNB100-16	17.0
RNB100-18	19.0
RNB100-20	21.0
RNB100-22	23.0
RNB150-8	8.4	36.0	66.0	23.0	27.0	26.6	19.5	3.2	250/300AWG 150-185mm² 395A
RNB150-10	10.5
RNB150-11	11.5
RNB150-12	13.0
RNB150-14	15.0
RNB150-16	17.0
RNB150-18	19.0	36.0	81.0	36.0
RNB150-20	21.0
RNB150-22	23.0
RNB150-24	25.0
RNB150-27	28.0
RNB180-8	8.4	38.5	69.0	24.5	28.5	28.6	21.0	3.5	300/350AWG 185-240mm² 440A
RNB180-10	10.5
RNB180-11	11.5
RNB180-12	13.0
RNB180-14	15.0
RNB180-16	17.0
RNB180-18	19.0	38.5	86.6	39.0
RNB180-20	21.0
RNB180-22	23.0
RNB180-24	25.0
RNB180-27	28.0
RNB200-8	8.4	44.0	72.0	24.5	31.5	32.6	24.0	3.9	400/500AWG 240-340mm² 470A
RNB200-10	10.5
RNB200-11	11.5
RNB200-12	13.0
RNB200-14	15.0
RNB200-16	17.0
RNB200-18	19.0	44.0	91.0	37.5
RNB200-20	21.0
RNB200-22	23.0
RNB200-24	25.0
RNB200-27	28.0
RNB325-8	8.4	50.5	88.0	33.5	35.5	37.1	28.0	4.2	500/600AWG 300-400mm² 650A
RNB325-10	10.5
RNB325-11	11.5
RNB325-12	13.0
RNB325-14	15.0
RNB325-16	17.0
RNB325-18	19.0	50.5	105.7	45.0
RNB325-20	21.0
RNB325-22	23.0
RNB325-24	25.0
RNB325-27	28.0
