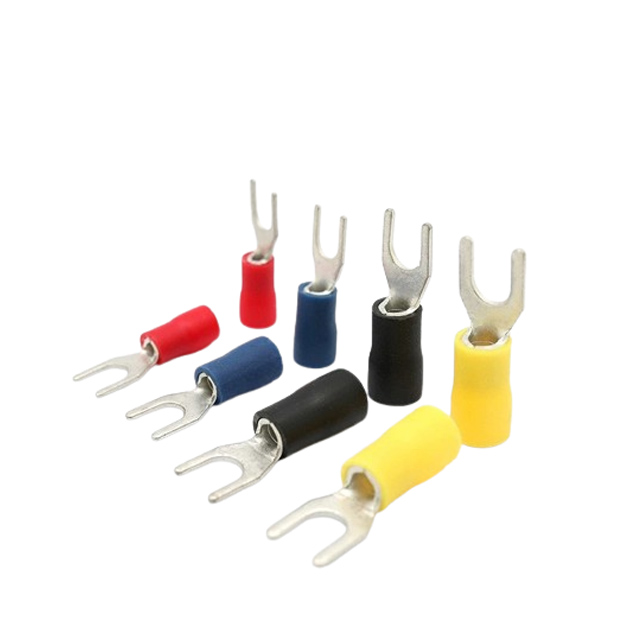

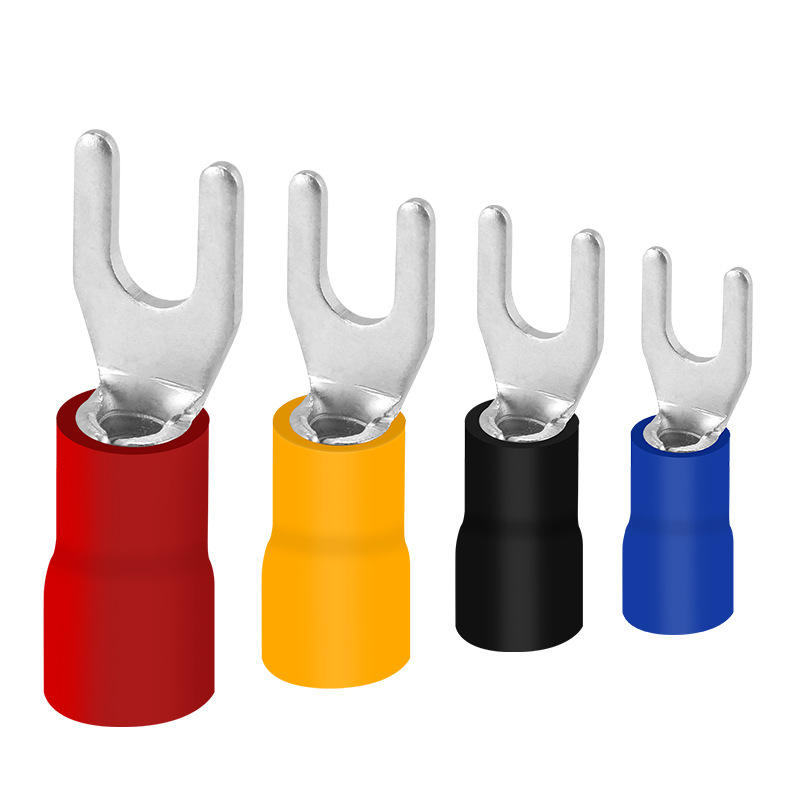

Crimping Terminal Series Insulated Spade Terminals

Share to:
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

  • Insulated Spade Terminals

Availability:
Quantity:
Inquire

Crimping Terminal Series
Product Description
Product Model

Material: Copper

Insulation Material: Vinyl (PVC)

Plating: Electro Tin Plated


Cable dia. 0.5-1.5mm²     Imax=19A             Material thickness: 0.75mm
Item No. Screw dia.(mm) Dimension (mm) Color
B L F H D
SV1.25-3 3.2 5.7 21.2 6.5 10.0 4.3 Red
SVS1.25-3.5 3.7 5.7 21.2 6.5
SVL1.25-3.5 3.7 6.4 21.2 6.5
SVS1.25-4 4.3 6.4 21.2 6.5
SVM1.25-4 4.3 7.2 21.2 6.5
SVL1.25-4 4.3 8.1 21.2 6.5
SVS1.25-5 5.3 8.1 21.2 6.5
SVL1.25-5 5.3 9.5 21.2 6.5
SVS1.25-6 6.4 9.5 21.2 6.5
SVL1.25-8 6.4 12.0 21.2 11.0

Cable dia. 1.5-2.5mm²     Imax=27A             Material thickness: 0.8mm
Item No. Screw dia.(mm) Dimension (mm) Color
B L F H D
SV2-3 3.2 5.7 21.2 6.5 10.0 4.9 Blue
SVS2-3.5 3.7 5.7 21.2 6.5
SVL2-3.5 3.7 6.0 21.2 6.5
SVS2-4 4.3 6.4 21.2 6.5
SVM2-4 4.3 7.2 21.2 6.5
SVL2-4 4.3 8.1 21.2 6.5
SVS2-5 5.3 8.1 21.2 6.5
SVL2-5 5.3 9.5 21.2 6.5
SVS2-6 6.4 9.5 21.2 6.5
SVL2-6 6.4 12.0 21.2 11.0
Cable dia. 2.5-4mm²     Imax=37A             Material thickness: 1.0mm
Item No. Screw dia.(mm) Dimension (mm) Color
B L F H D
SV3.5-3 3.2 5.7 24.8 7.0 13.0 6.2 Black
SVS3.5-4 4.3 8.0 24.8 7.0
SV3.5-5 5.3 8.0 24.8 7.0
SV3.5-6 8.4 12.0 28.0 12.1
Cable dia. 4-6mm²     Imax=48A             Material thickness: 1.0mm
Item No. Screw dia.(mm) Dimension (mm) Color
B L F H D
SV5.5-3.5 3.7 8.3 25.2 7.5 13.0 6.7 Yellow
SVS5.5-4 4.3 8.3 25.2 7.5
SVL5.5-4 4.3 9.0 25.2 7.5
SV5.5-5 5.3 9.0 25.2 7.5
SVS5.5-6 6.4 9.0 25.2 7.5
SVL5.5-6 8.4 12.0 31.2 12.0
SVS 5.5-8 10.5 14.0 30.0 11.5
