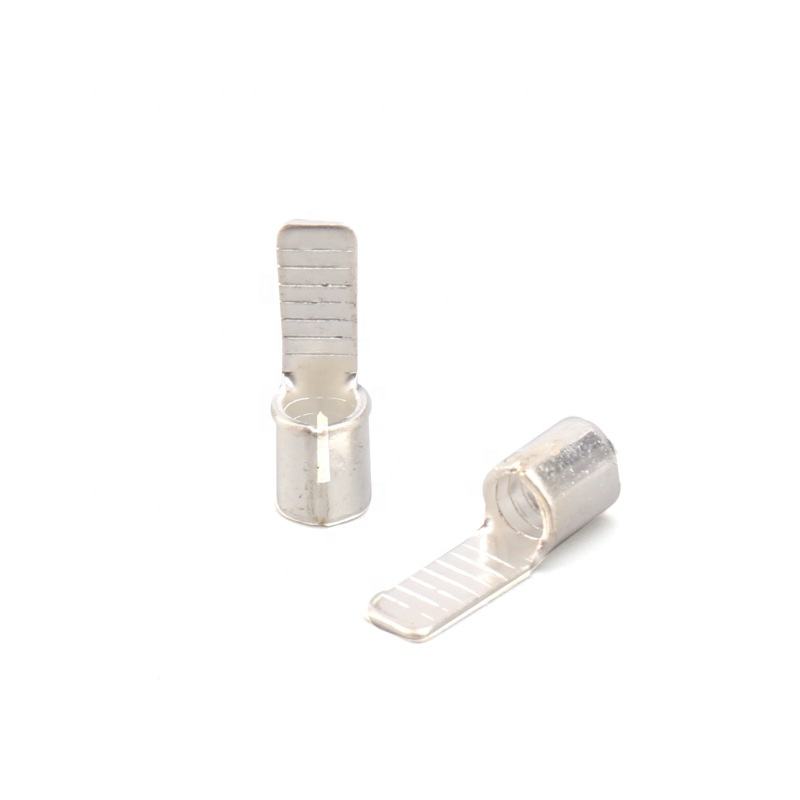

Copper Bare Terminal
Copper Bare Terminal Copper Bare Terminal
Copper Bare Terminal Copper Bare Terminal

loading

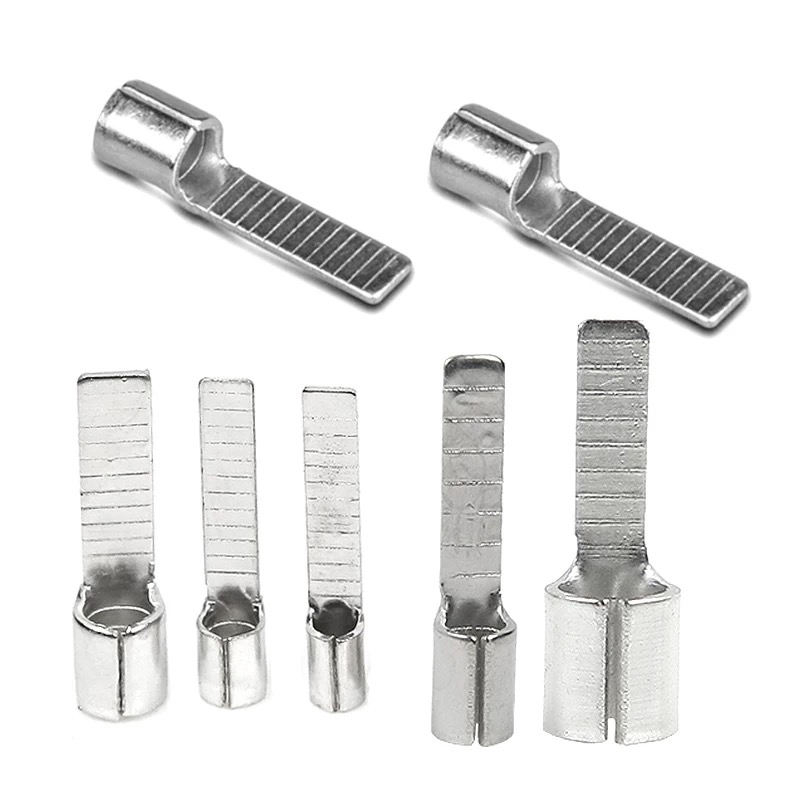

Copper Bare Terminal Non-insulated Blade Terminal

Share to:
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

  • Non-insulated Blade Terminal

Availability:
Quantity:
Inquire

Copper Bare Terminal
Product Description
Product Model

Material: Copper

Brezed Sean

Plating: Tin

Item No. Dimension (mm)
B L F E D d Wire Range AWG/mm²
DBN1.25-10 2.3 14.8 10.0 4.8 3.4 1.7 22-16AWG
0.5-1.2mm²
19A
DBN1.25-11 2.3 15.8 11.0
DBN1.25-14 2.3 18.8 14.0
DBN1.25-18 2.3 22.8 18.0
DBN2-9 2.3 13.8 9.0 4.8 4.1 2.3 16-14AWG
1.5-2.5mm²
27A
DBN2-14 2.3 18.8 14.0
DBN2-18 2.3 22.8 18.0
DBN5.5-10 2.8 14.8 10.0 6 5.6 3.4 14-12AWG
4-6mm²
48A
DBN5.5-14 4.5 21.0 14.0
DBN5.5-18 4.5 23.0 18.0
DBN8-14 5.0 22.5 14.0 8.5 7.2 4.5
DBN14-16 6.0 30.6 16.0 14.0 9.0 6.5
