Applications
-Multifunctional time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control. -With 20 delay modes, the delay range covers 0.1 seconds to 99 days.
Feature
-20 delay modes:
-5 delay modes controlled by power supply -13 delay modes controlled by signal
-ON, OFF mode
-Ultra wide delay range, 0.1 seconds - 99 days can be set.
- Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

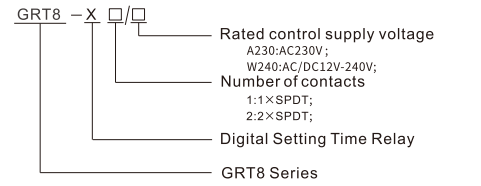

Model and connotation

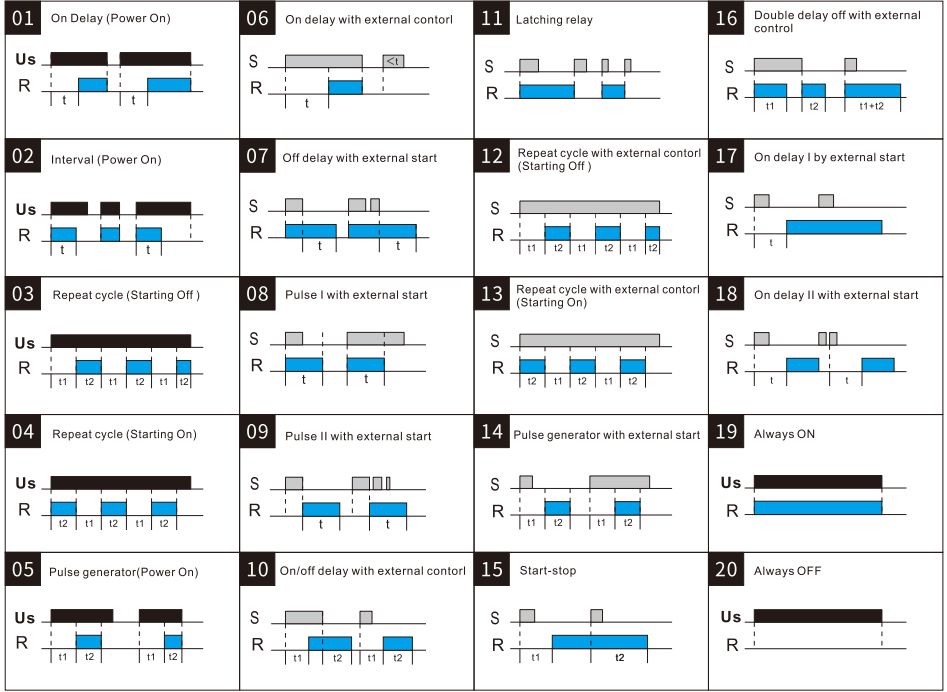

Functions Diagram
