Applications
-Multifunctional time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control. -With 20 delay modes, the delay range covers 0.1 seconds to 99 days.
Feature
-2x Delay ON (2 time relays in one)
-Time scale 0.1s - 10 days divided into 10 time ranges:
0.1s-1s/1s-10s/0.1min-1min/1min-10min/0.1h-1h/ 1h-10hrs /0.1 day-1 day/1 day- 10 days/ON/ OFF.
-Times t1 and t2 are independantly adjustable. -t1 and t2 are switched on after supply voltage connection.
-Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

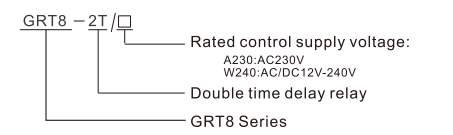

Model and connotation

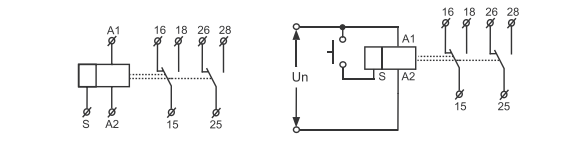

Functions Diagram
