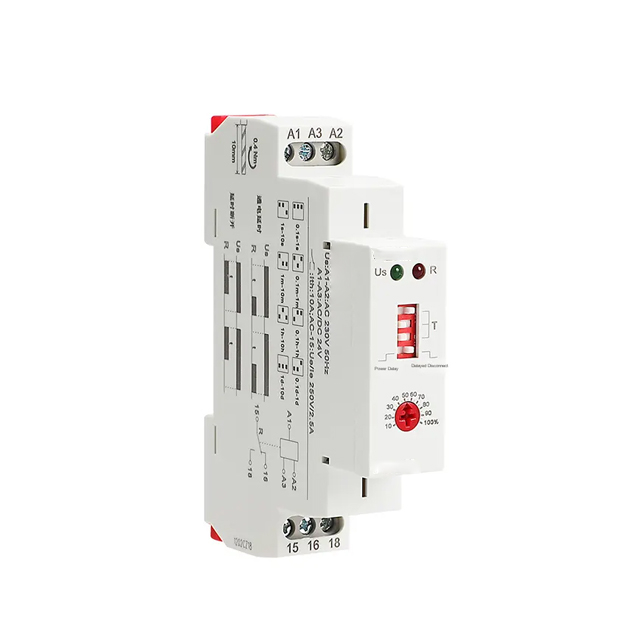

Dual function time relay

Dual function time relay can be used for industrial equipment, lighting control, heating element control, motor and fan control, with two delay modes, and the delay range covers 0.1 seconds to 10days.

Model:
T8-EC

Availability:

Quantity:



Inquire

Dual function time relay

Product Description

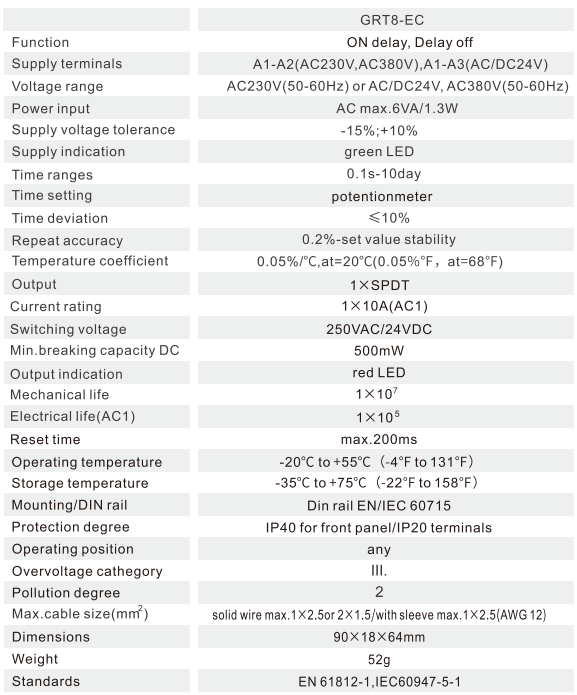

Technical Parameters

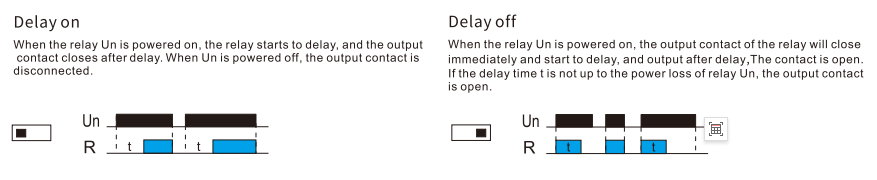

Functions Diagram

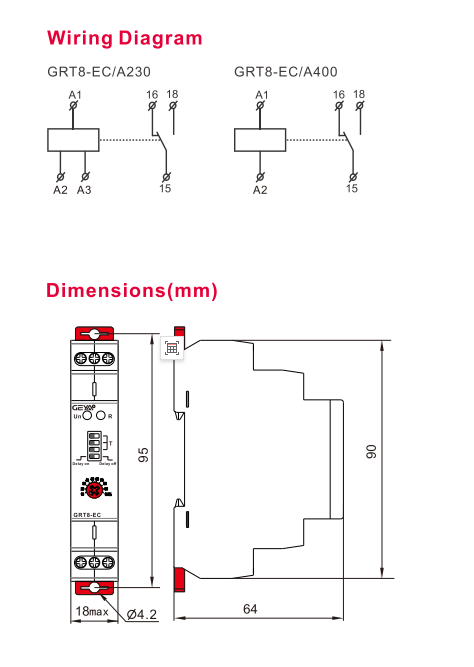

Wiring Diagram

Applications

-Dual function time relay can be used for industrial equipment, lighting control, heating element control, motor and fan control, with two delay modes, and the delay range covers 0.1 seconds to 10days.

Feature

-Two delay modes can be set.

-Supports AC230V ,AC/DC24V two kinds of working voltage.

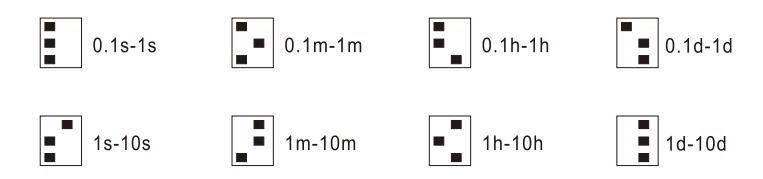

-Ultra wide delay range, 0.1 seconds - 10 days can be set..

-The working state of the relay is indicated by the LED indicator.

-Ultra small size, only 18mm width, 35mm rail installation.

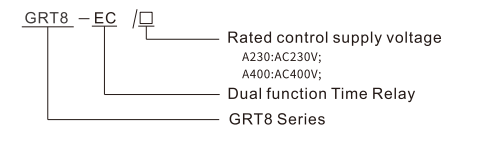

Model and connotation
