Applications
-Multifunctional time relay with digital settings can be used for industrial equipment, lighting control, heating element control, motor and fan control. It has four delay modes and the delay range covers 0.1 seconds to 99 hours.
Feature
-Four functional modes can be set.
- Through digital dialing settings, it is easy to operate and set more precisely.
- Extra wide delay range, 0.1 seconds - 99 hours can be set.
- With AC/DC 12V-240V ultra wide operating voltage specifications are optional.
-Relay status is indicated by LED.
-1-MODULE.DIN rail mounting.

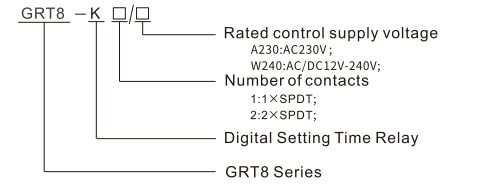

Model and connotation

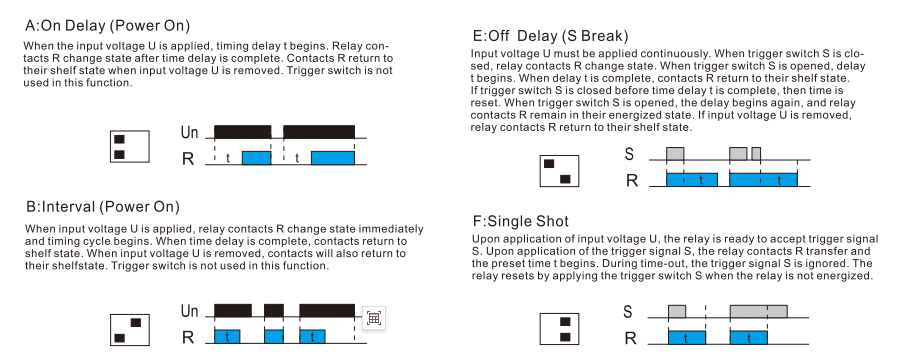

Functions Diagram

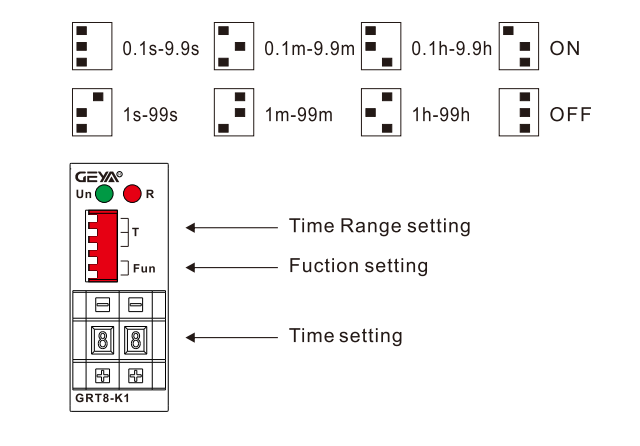

Time Range
