Applications
-It is used to delay and generate a pulse, which is used to delay the connection of a load for a period of time.
Feature
-Separate delay time and pulse width setting can set different delay time.
-Time scale 0.1 s- 100 days.
-The delay time can be reset by shorting S-A1. - With AC/DC 12V-240V ultra wide operating voltage specifications are optional.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

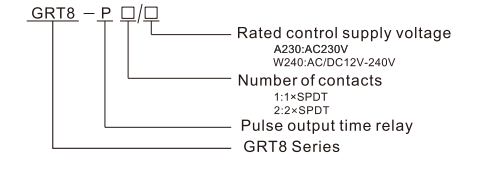

Model and connotation
Functions Diagram
