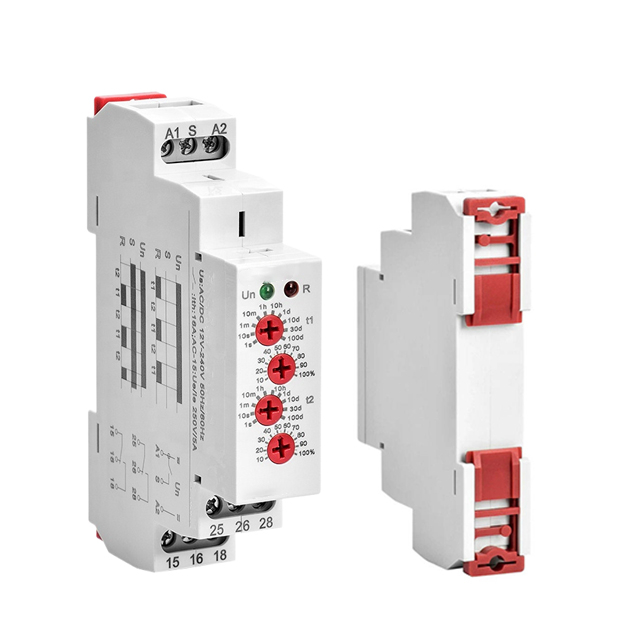

Applications
-Right-Left(inverser) timer relay are used for 2 different loads,which works by turn. First load starts working,stops and waits(off) and second load starts working.Both working time is same.
Feature
-The default is right load first. You can select left load first by shorting S-A1
-Time scale 0.1 s - 100 days devided into 10 time ranges: /1 hrs - 10 hrs/0.1 day- 1 day/1 day - 10 days /3 days - 30 days/ 10 days - 100 days). (0.1 s-1s/1 s-10 s/0.1 min-1 min/1 min-10 min/0.1 hrs-1 h
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

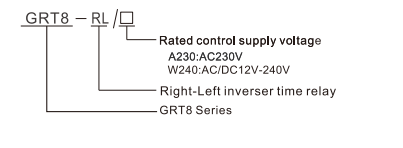

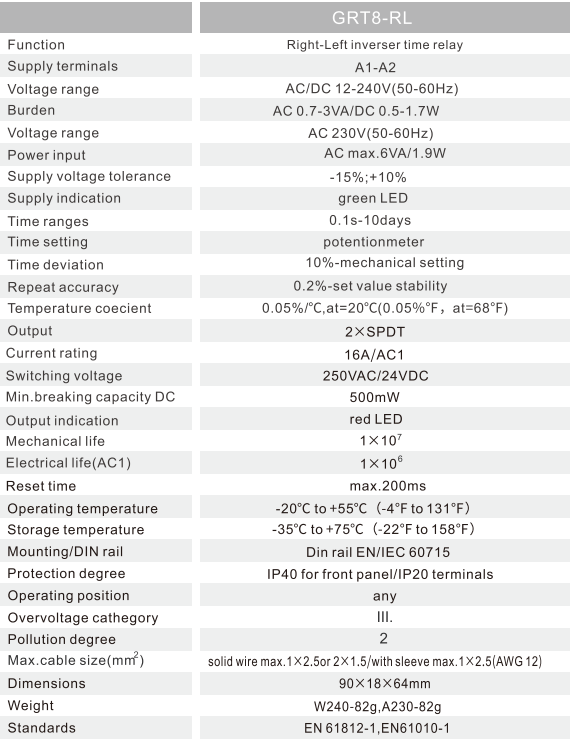

Model and connotation

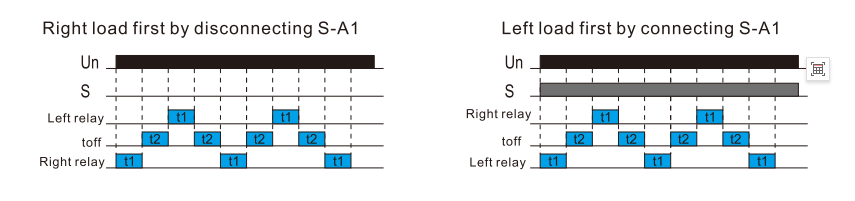

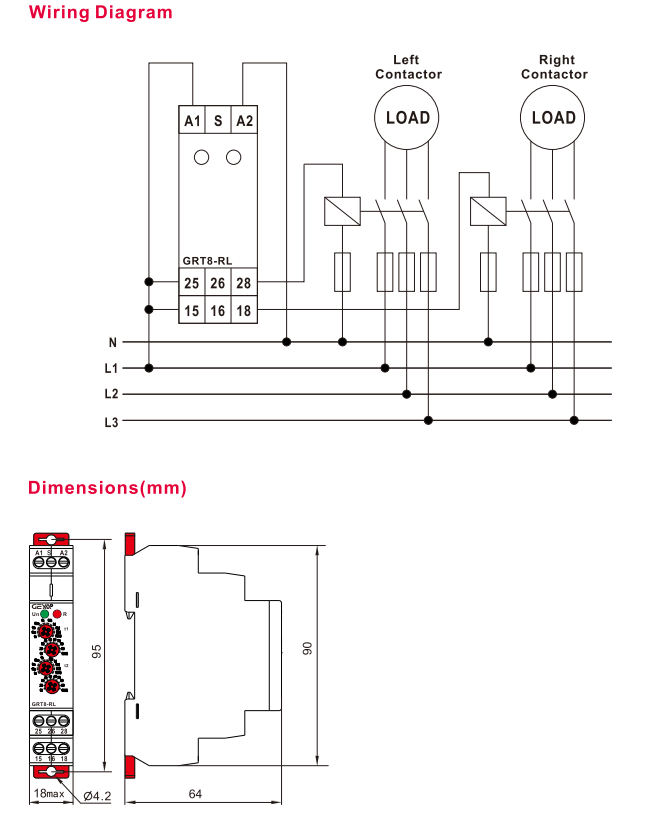

Functions Diagram
