Applications
-Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).
Feature
10 functions:
-8 time unctions controlled by supply voltage -2 time functions controlled by control input

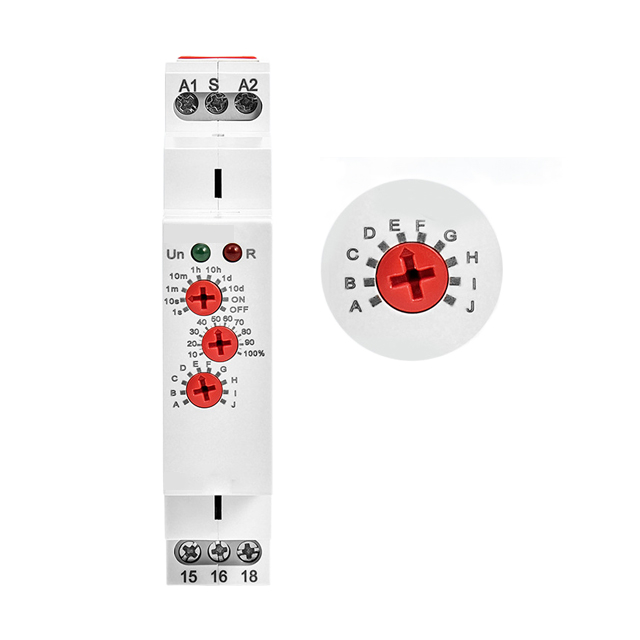

-Comfortable and well-arranged function and time-range setting by rotary switches.
-Time scale 0.1 s - 10 days divided into 10 ranges.
-Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

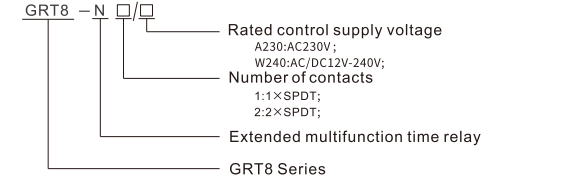

Model and connotation

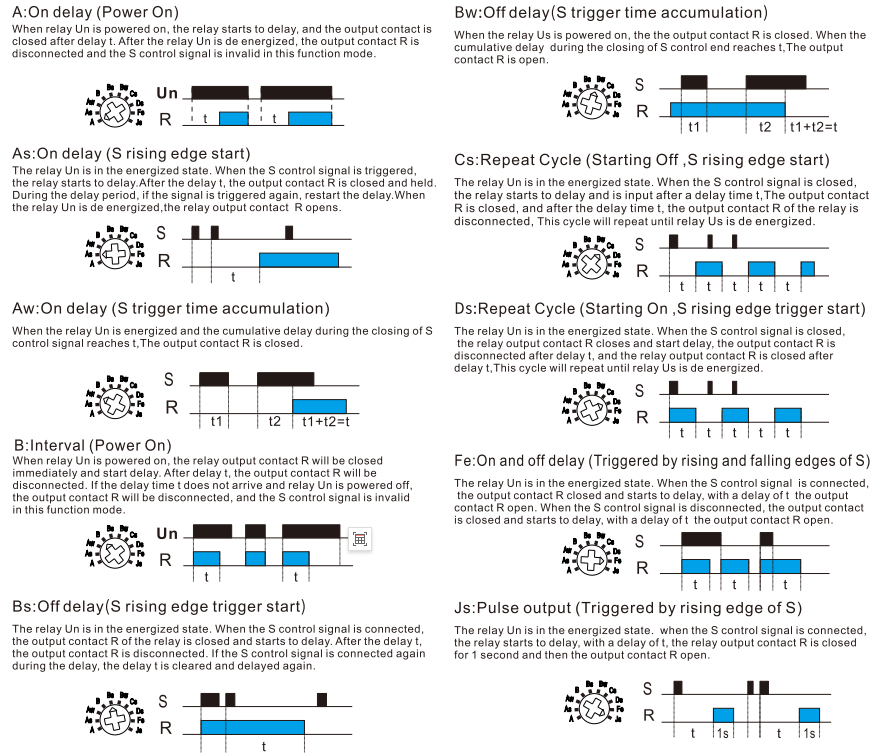

Functions Diagram

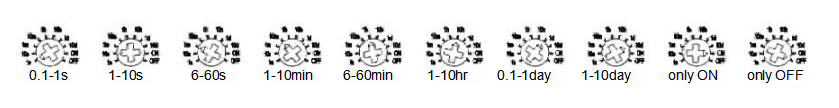

Time Range
