Applications
-Suitable for applications where function and time requirements are know .
-Time switch, possible to be used for pump decay time after switching heating off, switching of fans.

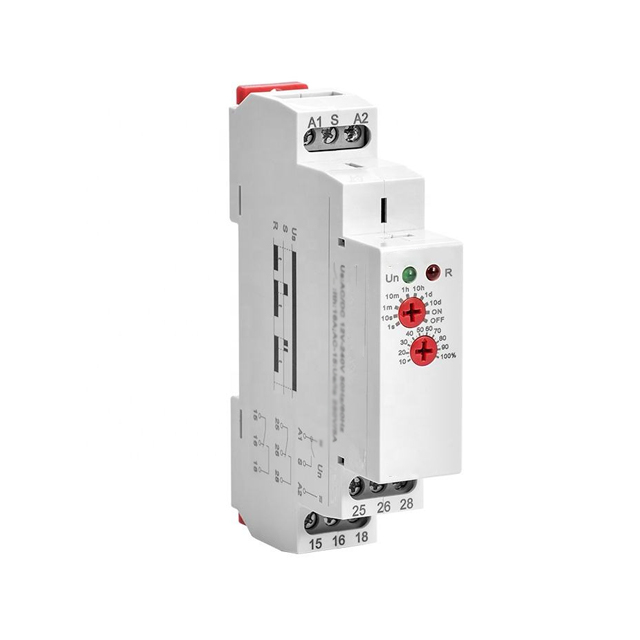

Feature
-Single-function relay with possibility of time setting by a potentiometer.
-Choice of 2 functions:
A:Delay ON
B:Delay OFF
-Time scale 0.1 s - 10 days divided into 10 ranges.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

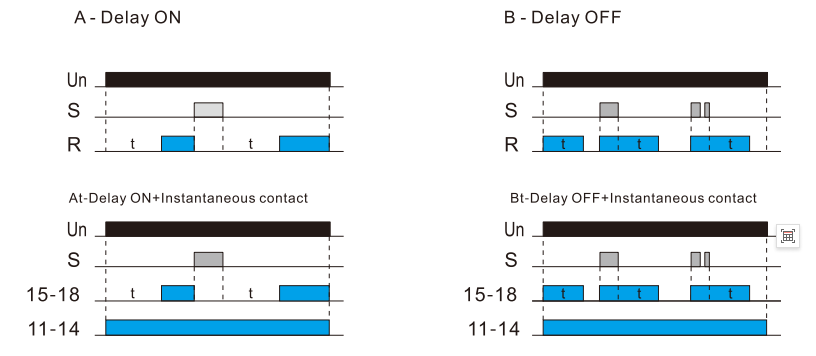

Functions Diagram

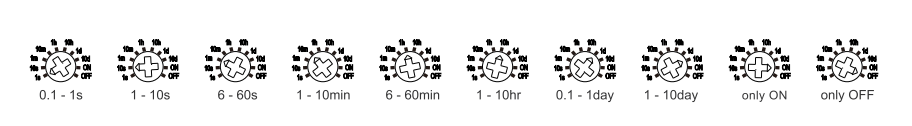

Time Range
